air.Blade für VA0.x Gehäuse
SKU 242003

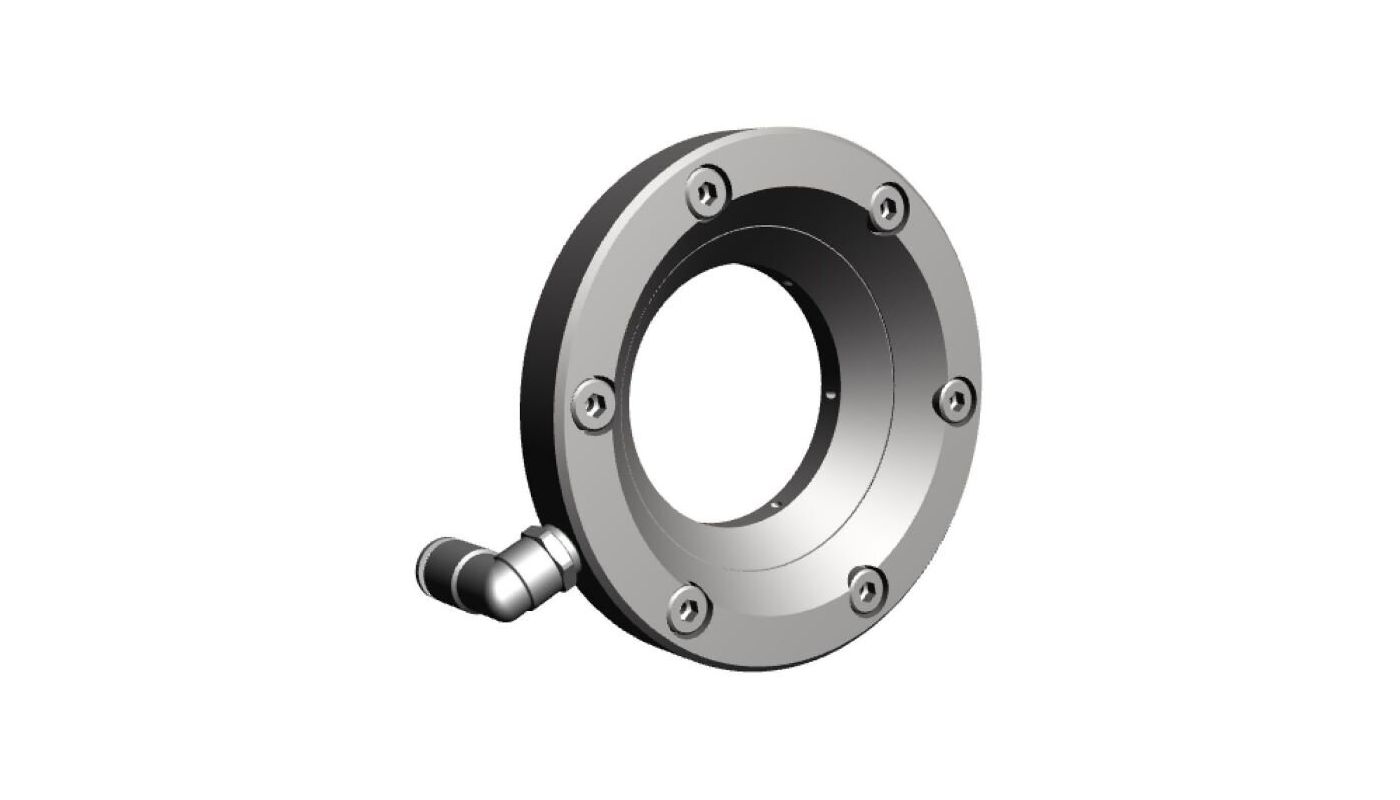

Pneumatic cleaning system for camera systems of the T08-VA0.x and T10-VA0.x series, operating pressure (max): 10 bar (temporary)
For Prices and Availability please login.
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 26030400 |
|---|---|
| Series | air.Blade |
| Brand | SAMCON |
|---|
Main Features
- Temperature range: -30°C to +150°C
- Max. operating pressure: 10 bar for temporary cleaning
- Recommended operating pressure: 6 bar for permanent cleaning
- Volume flow: >5L/min for permanent cleaning
- Material: Stainless steel (1.4404)
