EL1500C

SKU 200701

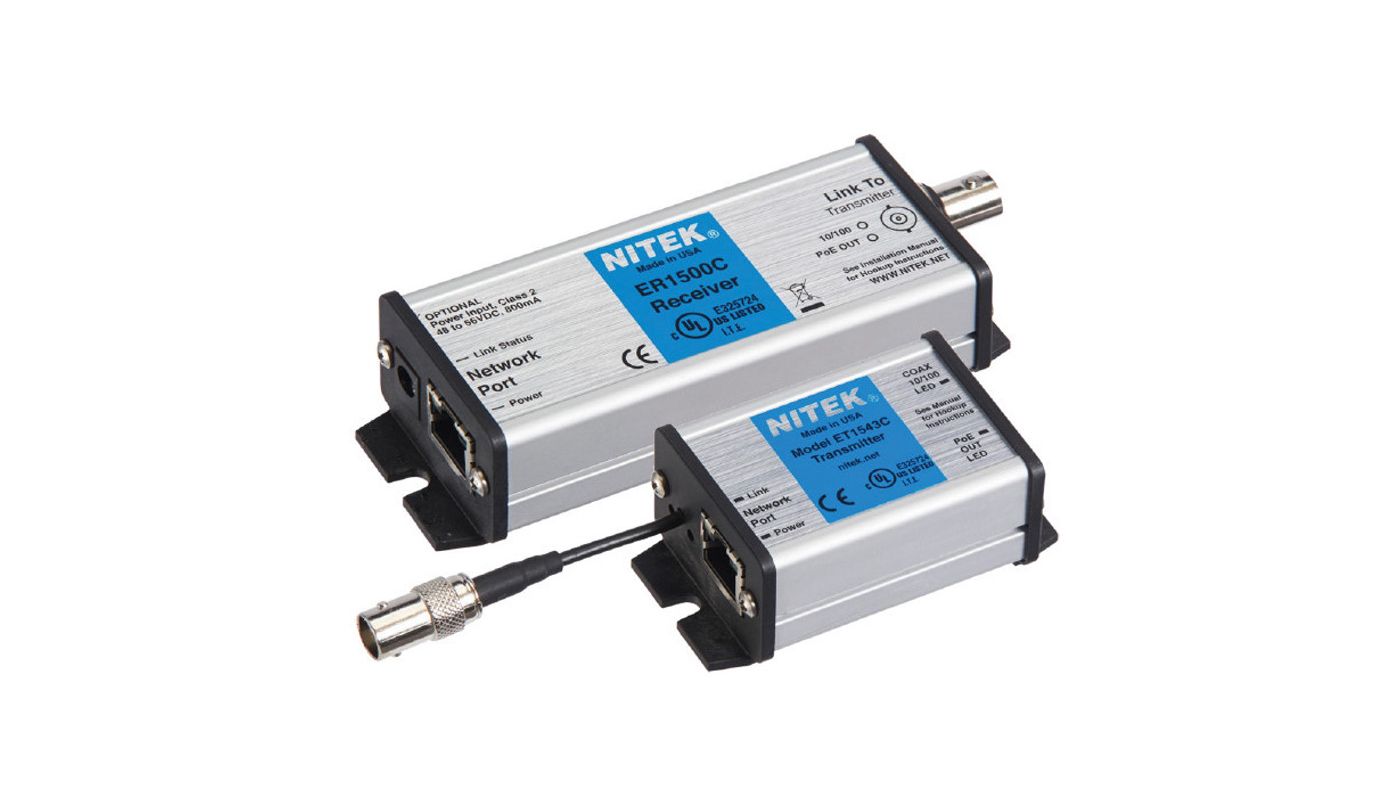

Ethernet, PoE Extender, Coax, 1 Port, Extension of 500m Set aus 1x ER1500C/1x ET1543C
Data sheet

Specifications

Manufacturer order number EL1500C
Series Ethernet Extender, PoE Extender
Brand Nitek
Extension 500 m
Input power 33W
Model housing
Mounting ceiling mount, desktop, wall mount
Operating temperature -40°C ~ +75°C
Operation mode n/a
Output power 15,4W, 22.8W, 26W
PoE input n/a
PoE output IEEE802.3af, IEEE802.3at, n/a
PoE ports (number) 1
Ports 1x 10/100Base-TX, 1x coax/BNC
Protection rating n/a
Range 500 m
Supply voltage PoE
Transmission medium Coax
Type Sender/Empfänger
Wavelength n/a

Additional Productinformation

Bitte beachten Sie, dass es bei unserem US-Hersteller Nitek aufgrund der nachlassenden Verfügbarkeit älterer Bauteile, insbesondere analoger Video-Komponenten, zu Lieferverzögerungen kommen kann. Wir bitten um Ihr Verständnis.

Main Features

  • Extension by 500 meters via coaxial cable
  • Supports any network device, including IP cameras
  • Supports megapixel cameras
  • Fully transparent to the network
  • Easy to install, no set up required
  • Optional PSU for non-PoE switches
