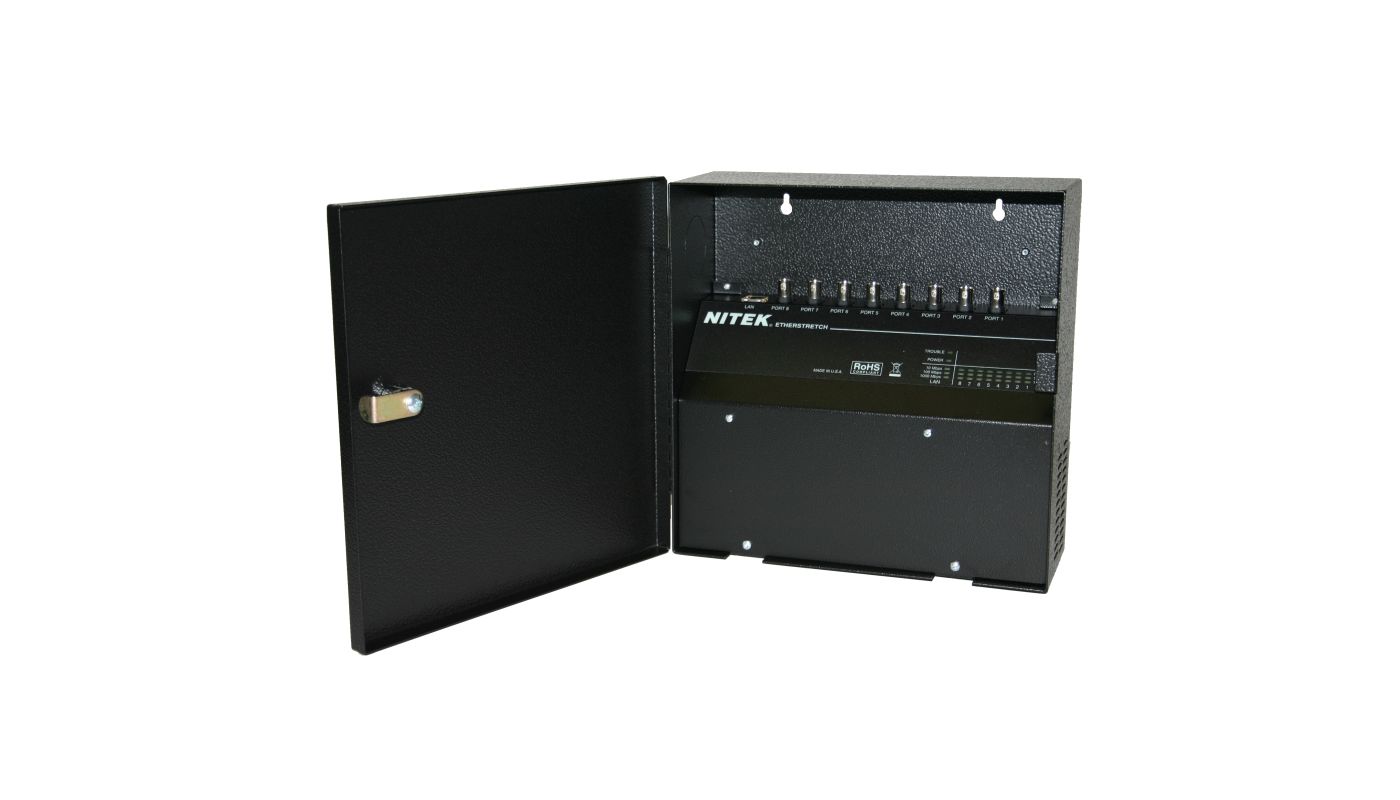

ER8400C

SKU 205485
Ethernet, PoE Extender, Coax, 8 Ports, Gigabit, PoE+, Wall Mounting, Extension of 500m
Data sheet

Specifications

Manufacturer order number ER8400C
Blower no
Brand Nitek
Certifications UL
Ethernet interface 100Base-TX, 10Base-T
Extension 500 m
Gigabit yes
Input power 320W
Model housing
Mounting wall mount
Operating temperature 0°C ~ +50°C
Output power 204W
PoE budget 204 W
PoE output PoE (IEEE802.3af), PoE+ (IEEE802.3at)
PoE ports (number) 8
Ports 8x 10/100Base-TX, RJ-45
Power consumption 320W
Power over Ethernet IEEE 802.3at
Protection rating n/a
Range 500 m
Supply voltage 110-240VAC
Type Layer2 switch, PoE extender

Additional Productinformation

Bitte beachten Sie, dass es bei unserem US-Hersteller Nitek aufgrund der nachlassenden Verfügbarkeit älterer Bauteile, insbesondere analoger Video-Komponenten, zu Lieferverzögerungen kommen kann. Wir bitten um Ihr Verständnis.

Main Features

  • Transmits IP data & PoE up to distances of 500 metres
  • Rack mounted 8 channel Etherstretch solution
  • Supports IEEE802.3af, IEEE802.3at
  • Includes a built-in power source for all devices
  • Gigabit output network connectivity
  • Supports 10/100 and PoE over coax cable
  • Short circuit, over current, over voltage protection
  • Supports mega-pixel technology
  • Supports any network device, including IP cameras
  • Easy to install, no set up required
  • No MAC or IP addressing required
  • Variable power input. 100-240VAC

Downloads

  • Data sheet PDF
    Data sheet with specifications generated live from the product database
