F03Z2.6DC-NFSHR
SKU 43274

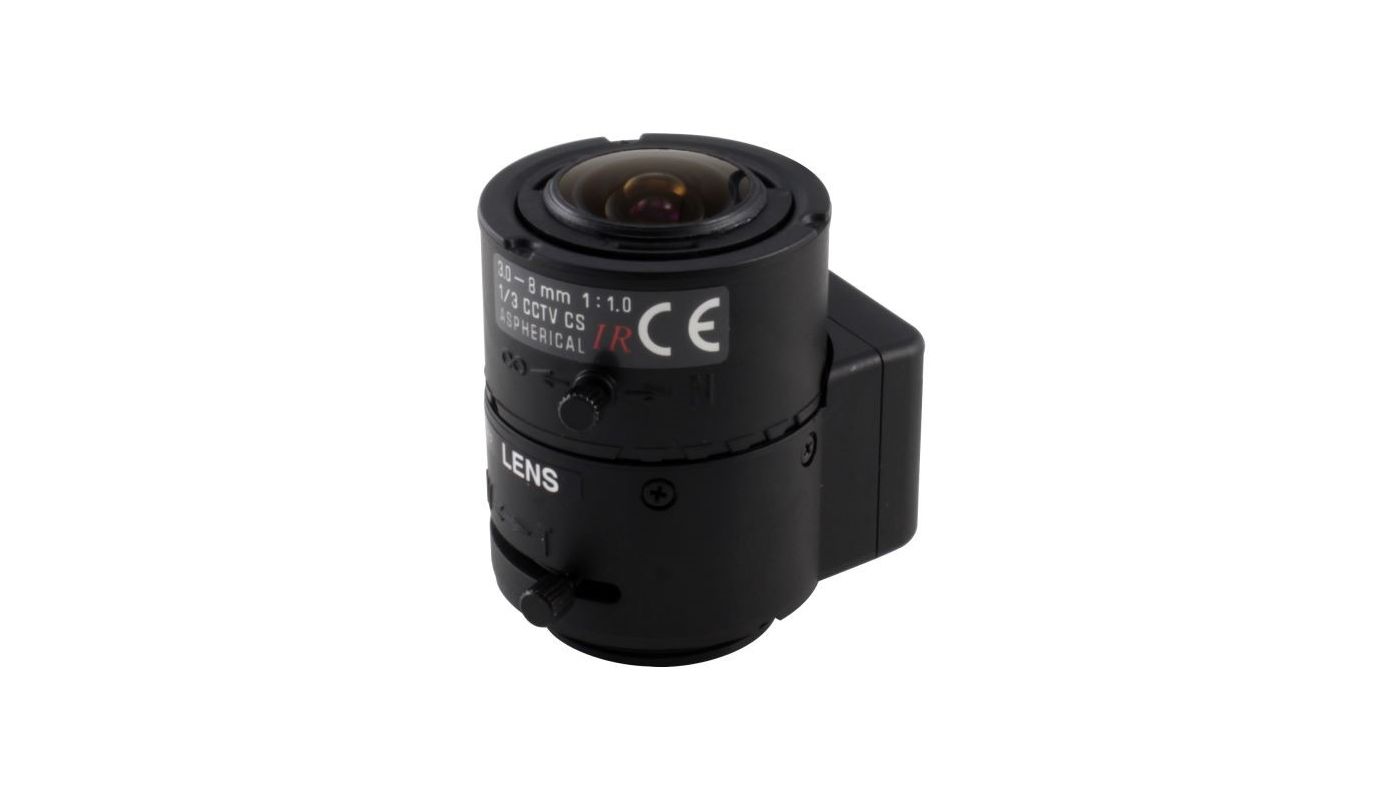

F1.0/3-8mm DC Lens, Varifocal, No Focus Shift, High Resolution, 1/3" CS Mount
For Prices and Availability please login.
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 43274 |
|---|
| Aperture range (F) | F1.0~F360 |
|---|---|
| Brand | eneo |
| Color | anthracite |
| Day&Night | yes |
| Diameter | 43,2 mm |
| Dimensions (HxWxD) | see drawing |
| Focal Length | 3 - 8 mm |
| Horizontal Angle of View | 77,4 - 33,4° |
| Iris Control | DC |
| Length | 54,4 mm |
| Lens Type | Varifocal |
| MOD (Mininum Object Distance) | 0,3 m |
| Megapixels | no |
| Mount | CS |
| Nominal Format | 1/3" |
| Operating temperature | -20°C ~ +60°C |
| Weight | 75g |
Main Features
- Suitable for 1/3" and 1/4" day&night cameras
- Variable focal length/Fast maximum aperture (F1.0)
- High resolution realizing 650 TV lines
- Clear images without colour smear
- Minimized chromatic abberation
- No-focus-shift between visible and near IR light
- Aspherical lens elements
- LD (Low Dispersion) glass
- CS mount
- Without built-in auto iris amplifier
- With 4 pin connector
- Adjustable slip-ring mount for cable positioning
