ICB-72M2713MAA
SKU 232574
1/2.8" Network Camera, 1920x1080, Day/Night, DOL-WDR, 2.7-13.5mm, Infrared, IP67
For Prices and Availability please login.
phased-out

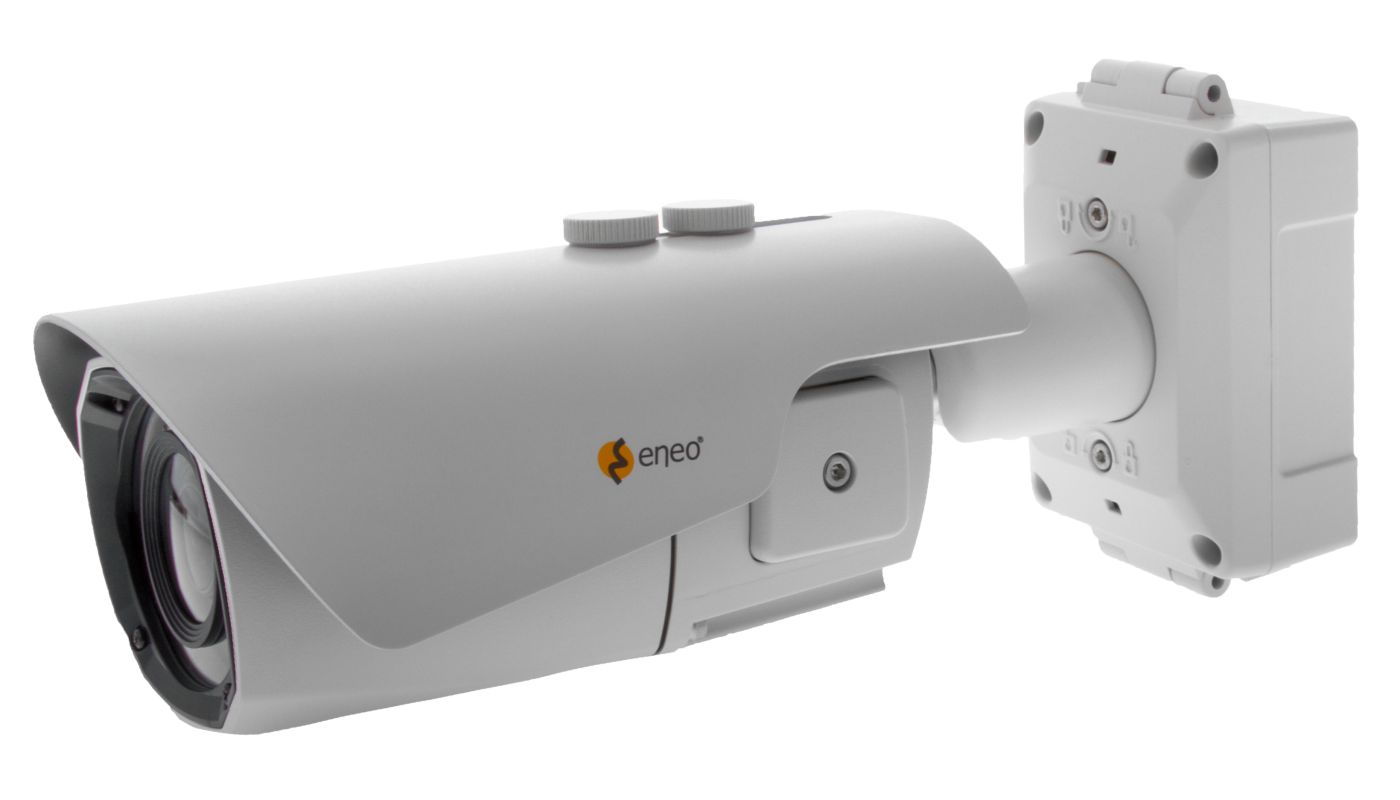

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 232574 |
|---|---|
| Series | eneo AN-Series, eneo Candid Medium |
| Alarm inputs | 1 |
|---|---|
| Alarm outputs | 1 |
| Analysis functions | Motion detection, Tampering Detection (TD) |
| Audio support | no |
| Backlight Compensation | BLC, HLC |
| Blower | yes |
| Brand | eneo |
| Camera type | Bullet |
| Color (housing) | Pantone Cool Gray 1C |
| Day&Night switch | ICR |
| Detect (25px/m) | 44 - 198 m |
| Digital Noise Reduction | yes |
| Digital Zoom | yes |
| Dimensions (HxWxD) | 130,5x107,8x301mm |
| Ethernet interface | 100Base-TX, 10Base-T |
| Focal Length | 2,7 - 13,5 mm |
| Horizontal Angle of View | 108 - 32° |
| Hosuing material | Aluminium |
| Housing | Outdoor |
| Identify (250 px/m) | 3,9 - 20,1 m |
| Illumination range | approx. 40m |
| Image Transmission Rate | 30 fps |
| Image resolution max. | 1920x1080 |
| Imager | CMOS |
| Internal storage | microSD-Kartenslot |
| Iris Control | DC |
| Lens Type | Varifocal (motorized) |
| Low Speed Shutter | yes |
| MOD (Mininum Object Distance) | 0,5 m |
| Motion Detector | yes |
| Mounting | Ceiling mount, Wall mount |
| ONVIF | ONVIF Profile S, ONVIF Profile T |
| Observe (62 px/m) | 16,6 - 80,5 m |
| Operating temperature | -50°C ~ +50°C |
| Power consumption | 10.5W, 12VDC, 12W, 16W, 24VAC, PoE |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP67 |
| Recognize (125 px/m) | 8,2 - 40,1 m |
| Remote configuration | Browser |
| Resolution Standard | HD 1080p |
| Sensitivity | 0,0008 Lux at F1,6, 40 IRE |
| Sensor size | 1/2.8" |
| Serial interfaces | Ethernet |
| Supply voltage | 12VDC, 24VAC, PoE |
| System | True Day&Night |
| Vandal proof | no |
| Vertical Angle of View | 56 - 18° |
| Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
| Video outputs | no |
| Weight | 1.6kg |
| Wide Dynamic Range (WDR) | D-WDR |
| Zoom Factor | 4x |
| llumination | Infrared |
Main Features
- 1/2.8" Sony STARVIS CMOS Sensor
- Excellent light sensitivity
- Resolution max. 1920x1080 (Full HD)
- Motorised varifocal lens 2.7~13.5mm
- DOL-WDR (120dB) by triple scan images at 30/25fps
- Motion Detection, Privacy Zones, Slow Shutter
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Smart Codec H.265 ROI (Region of Interest)
- Supports ONVIF Profile S and Profile T
- Vertical View 90°/270° Modus, H-Flip, Mirror
- Power supply PoE or 12VDC/24VAC, IP67
- Integrated connection box including connection board
