INB-55M2713M0A

SKU 234993

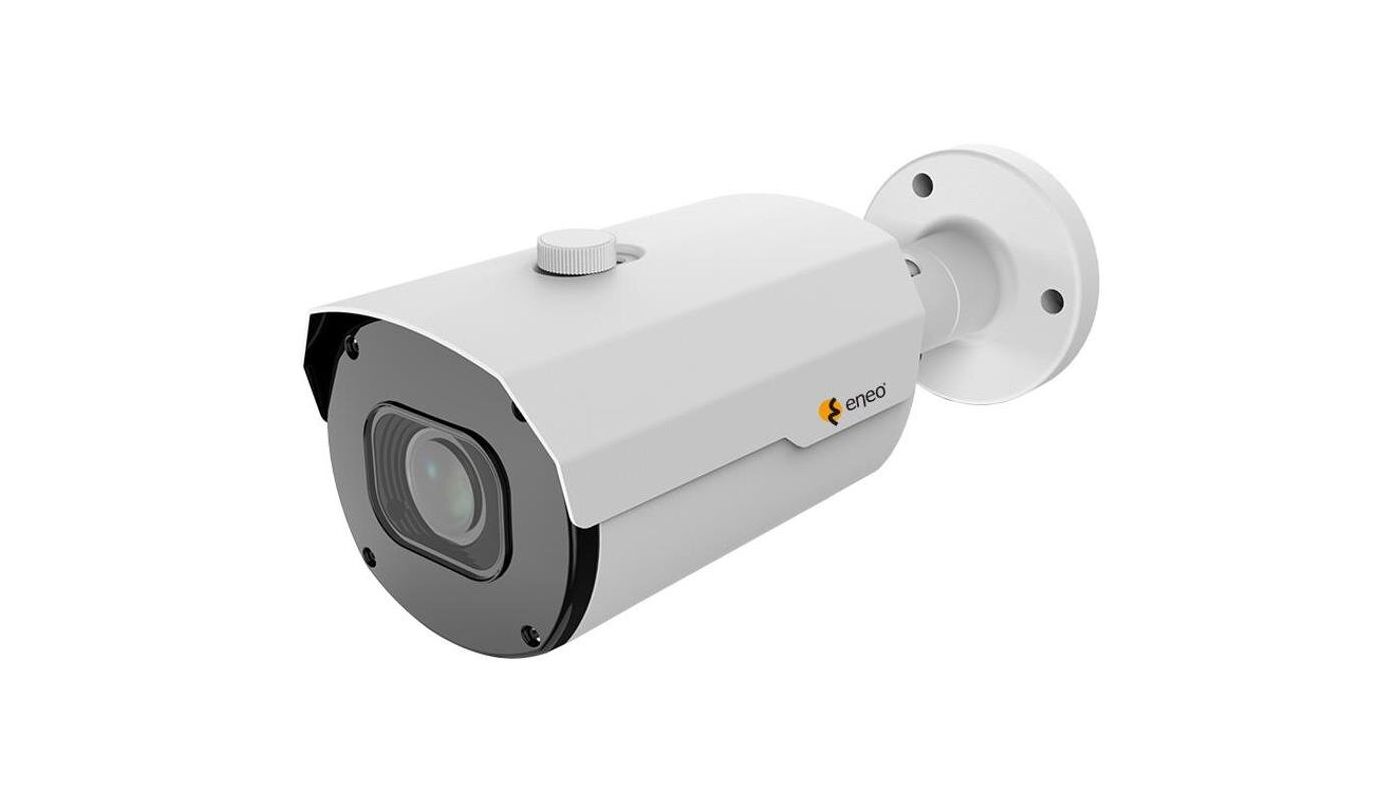

Network Camera Bullet, 2592x1944, Day/Night, WDR, AI 2,7-13,5mm, IR, 12V, PoE, IP67
Data sheet

Specifications

Manufacturer order number 234993
EAN/GTIN 4260229840078
Series eneo IN-Series
Alarm inputs 1
Alarm outputs 1
Analysis functions Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Audio 1/1 Line input and output, 2 Way Audio
Audio support yes
Backlight Compensation BLC, HLC
Blower no
Brand eneo
Camera Type Face recognition, License plate recognition, People Count, Retail Intelligence
Camera type Bullet
Color (housing) Pantone P 179-1, RAL9003
Day&Night switch ICR
Detect (25px/m) 62,5 - 260,3 m
Digital Noise Reduction yes
Digital Zoom yes
Dimensions (HxWxD) 83,88x87,4x242mm
Ethernet interface 100Base-TX, 10Base-T
Focal Length 2,7 - 13,5 mm
Heater no
Horizontal Angle of View 102 - 31°
Hosuing material Aluminium
Housing Outdoor
Identify (250 px/m) 5,2 - 25,6 m
Illumination range approx. 45m
Image Transmission Rate 30 fps
Image resolution max. 2592x1944
Imager CMOS
Internal storage microSD-Kartenslot
Iris Control DC
Lens Type Varifocal (motorized)
Low Speed Shutter yes
MOD (Mininum Object Distance) 0,3 m
Motion Detector yes
Mounting Ceiling mount, Wall mount
ONVIF ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Observe (62 px/m) 24,3 - 104,5 m
Operating temperature -35°C ~ +55°C, @ Humidity 90% or less (non-condensing)
Power consumption 4.5W
Power over Ethernet IEEE 802.3af
Protection rating IP67
Recognize (125 px/m) 11,5 - 52,2 m
Remote configuration Browser
Resolution Standard 5 Megapixel
Sensitivity 0,003 Lux at F1,6
Sensor size 1/2.7"
Serial interfaces Ethernet
Supply voltage 12VDC, PoE
System True Day&Night
Vandal proof no
Vertical Angle of View 73 - 23°
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Video outputs no
Weight 680g
Wide Dynamic Range (WDR) WDR 120dB
Zoom Factor 4x
llumination Infrared

Main Features

  • 1/2.7" CMOS sensor,5 MP/30fps
  • AI analysis functions including object classification
  • WDR 120dB, 3D-DNR Noise Reduction
  • Motorized varifocal lens 2.7-13.5mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Supports ONVIF Profile S and Profile T
  • Multilingual menu navigation (OSD)
  • Local storage via Micro SD card
  • Supports audio and external alarm input and output
  • NDAA compliance
  • IR LED illumination, IP67
