IND-58M2812MTA

SKU 236667

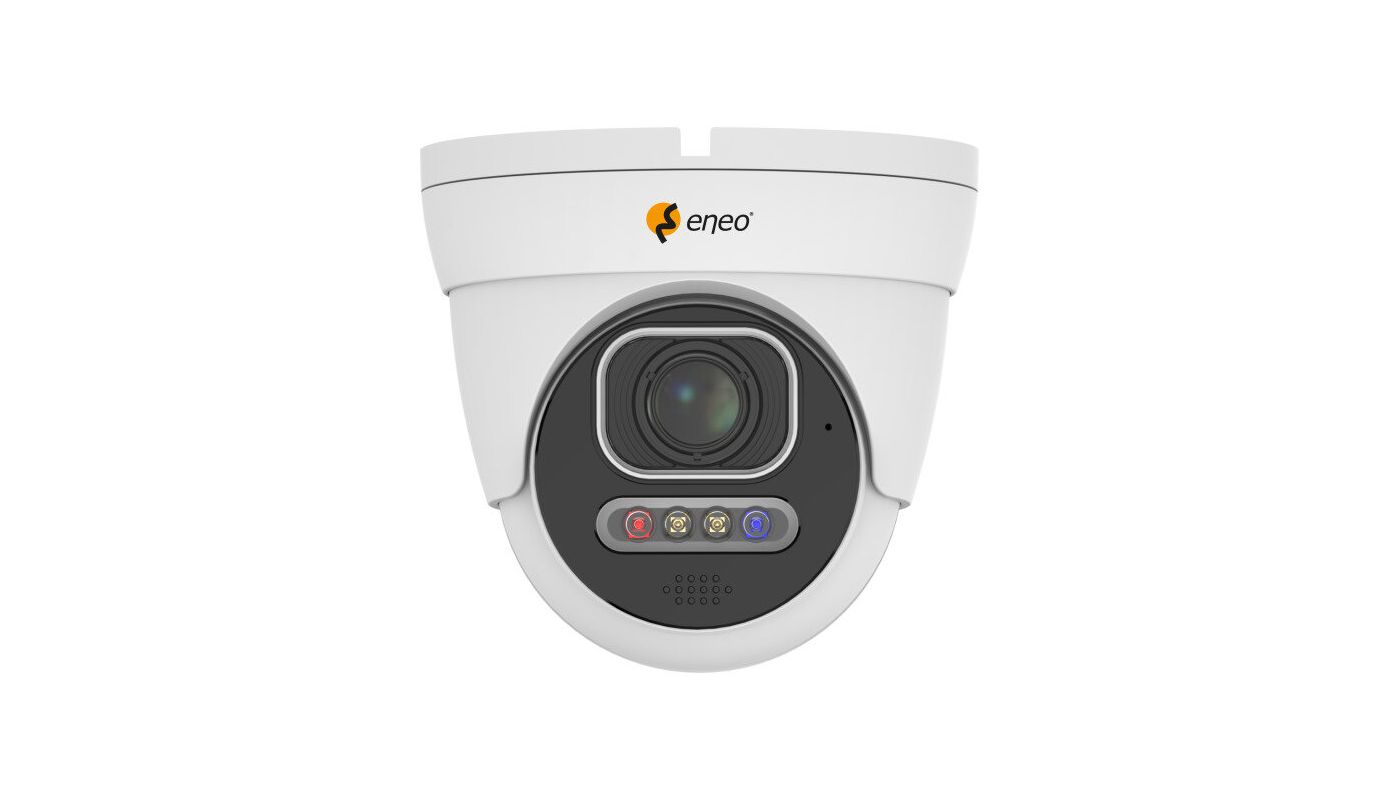

Network Dome Fix, Turret 3840x2160, Day/Night, WDR, AI 2,8-12mm, IR, 12VDC, PoE, IP67
Data sheet

Specifications

Manufacturer order number 236667
EAN/GTIN 4260229840559
Series eneo IN-Series
Alarm inputs 1
Alarm outputs 1
Analysis functions Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Audio 93±3dB max., built-in loudspeaker, built-in microphone
Audio support yes
Backlight Compensation BLC, HLC
Brand eneo
Camera Type Face recognition, License plate recognition, People Count, Retail Intelligence
Camera type Dome
Color (housing) Pantone P 179-1, RAL9003
Day&Night switch ICR
Detect (25px/m) 92,5 - 357,2 m
Digital Noise Reduction yes
Digital Zoom yes
Dimensions (HxWxD) 135x126.5mm
Ethernet interface 100Base-TX, 10Base-T
Focal Length 2,8 - 12 mm
Heater no
Horizontal Angle of View 107 - 34°
Hosuing material Aluminium
Housing Outdoor
Identify (250 px/m) 8,5 - 35,2 m
Illumination range approx. 25m, approx.20m White Light
Image Transmission Rate 30 fps
Image resolution max. 3840x2160
Imager CMOS
Internal storage microSD-Kartenslot
Iris Control DC
Lens Type Varifocal (motorized)
Low Speed Shutter yes
MOD (Mininum Object Distance) 1,5 m
Motion Detector yes
Mounting Ceiling mount, Wall mount
ONVIF ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Observe (62 px/m) 59,9 - 144 m
Operating temperature -35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
Power consumption 8,6W
Power over Ethernet IEEE 802.3af
Protection rating IP67
Recognize (125 px/m) 17,8 - 71,4 m
Remote configuration Browser
Resolution Standard 8 Megapixel
Sensitivity 0,007 Lux bei F1,0
Sensor size 1/2.8"
Serial interfaces Ethernet
Supply voltage 12VDC, PoE
System 24h color
Vandal proof no
Vertical Angle of View 56 - 19°
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Video outputs no
Weight 820g
Wide Dynamic Range (WDR) WDR 120dB
Zoom Factor 4x
llumination Infrared, White light

Main Features

  • 1/2.8" Sony STARVIS CMOS sensor
  • Maximum resolution 3840x2160 pixels, 30fps
  • AI analysis functions including object classification
  • WDR 120dB, 3D-DNR noise reduction
  • Motorised varifocal lens 2.8-12mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser independent (Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/G
  • Local storage via Micro SD card
  • Supports audio and external alarm input and output
  • NDAA compliance
  • IR and white light LED illumination, IP67
