IND-68M2812MFA

SKU 235256

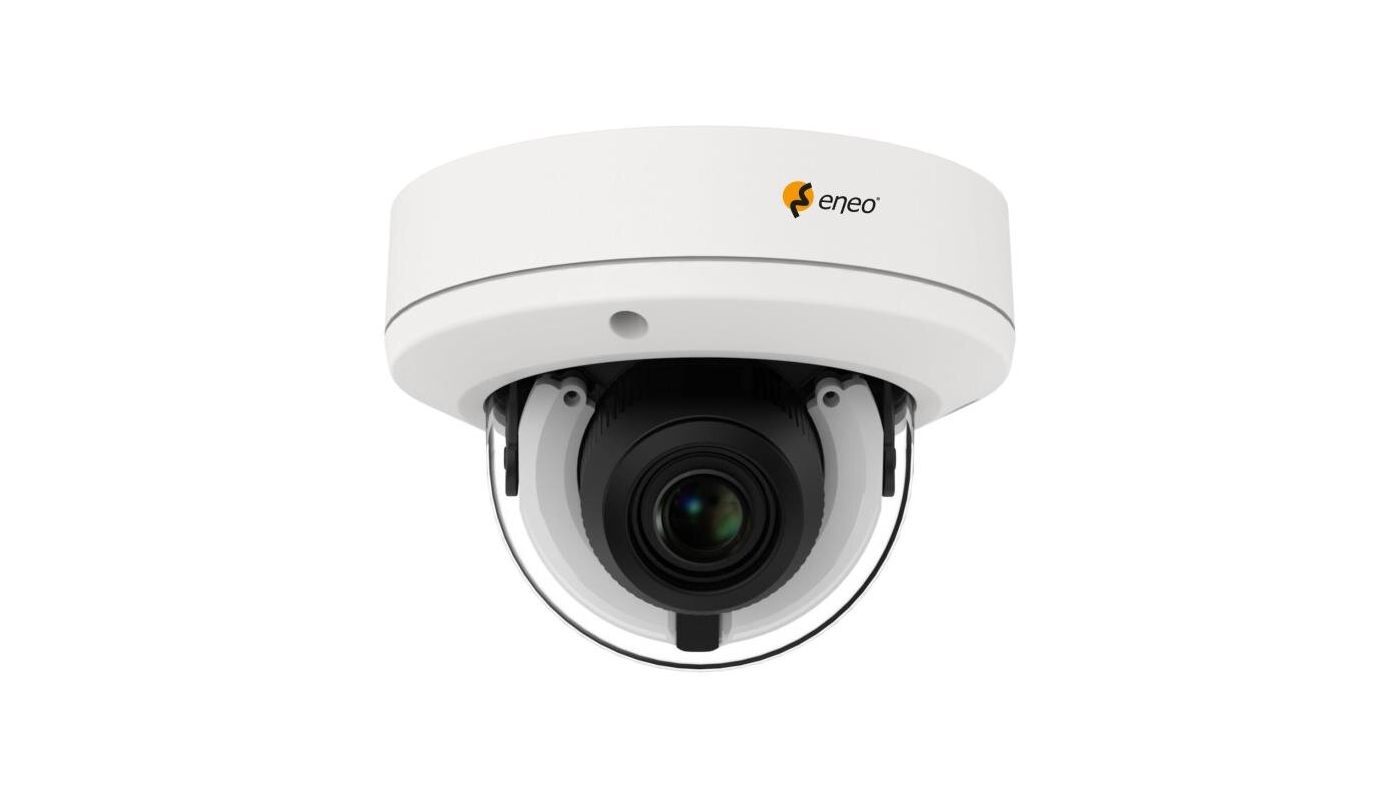

Network Dome Fix, 3840x2160, Day/Night, WDR, AI 2,8-12mm, IR, 12VDC, PoE, IP67
Data sheet

Specifications

Manufacturer order number 235256
Series eneo IN-Series
Alarm inputs 1
Alarm outputs 1
Analysis functions Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Audio 1/1 Line input and output, 2 Way Audio
Audio support yes
Backlight Compensation BLC, HLC
Blower no
Brand eneo
Camera Type Face recognition, License plate recognition, People Count, Retail Intelligence
Camera type Dome
Certifications IK10
Color (bubble) clear
Color (housing) Pantone P 179-1, RAL9003
Day&Night switch ICR
Detect (25px/m) 92,5 - 357,2 m
Digital Noise Reduction yes
Digital Zoom yes
Dimensions (HxWxD) 109x148,7mm
Ethernet interface 100Base-TX, 10Base-T
Focal Length 2,8 - 12 mm
Heater no
Horizontal Angle of View 107 - 34°
Hosuing material Aluminium
Housing Outdoor
Identify (250 px/m) 8,5 - 35,2 m
Illumination range approx. 30m IR, approx.25m White Light
Image Transmission Rate 30 fps
Image resolution max. 3840x2160
Imager CMOS
Internal storage microSD-Kartenslot
Iris Control DC
Lens Type Varifocal (motorized)
Low Speed Shutter yes
MOD (Mininum Object Distance) 1,5 m
Motion Detector yes
Mounting Ceiling mount, Wall mount
ONVIF ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Observe (62 px/m) 59,9 - 144 m
Operating temperature -35°C ~ +55°C, @ Humidity 90% or less (non-condensing)
Power consumption 8W
Power over Ethernet IEEE 802.3af
Protection rating IP67
Recognize (125 px/m) 17,8 - 71,4 m
Remote configuration Browser
Resolution Standard 8 Megapixel
Rotation range 350°
Sensitivity 0,002 Lux bei F1,0
Sensor size 1/2.8"
Serial interfaces Ethernet
Supply voltage 12VDC, PoE
System 24h color
Vandal proof yes
Vertical Angle of View 56 - 19°
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Weight 950g
Wide Dynamic Range (WDR) WDR 120dB
Zoom Factor 4x
llumination Infrared, White light

Main Features

  • 1/2.8" Sony STARVIS CMOS sensor,8 MP/30fps
  • AI analysis functions including object classification
  • Colour images in the dark due to integrated white light
  • WDR 120dB, 3D-DNR Noise Reduction
  • Motorized varifocal lens 2.8-12mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Supports ONVIF Profile S and Profile T
  • Local storage via Micro SD card
  • Supports audio and external alarm input and output
  • NDAA compliance
  • IR LED illumination, IP67 and vandal proof IK10
