IPD-73M2812M0A
SKU 213020This article is no longer available Successor: IPD-73M2812MWA
1/2.8" Network Dome,Fixed, 2048x1536, Day&Night, D-WDR, 2.8-12mm, Infrared, IP67
discontinued

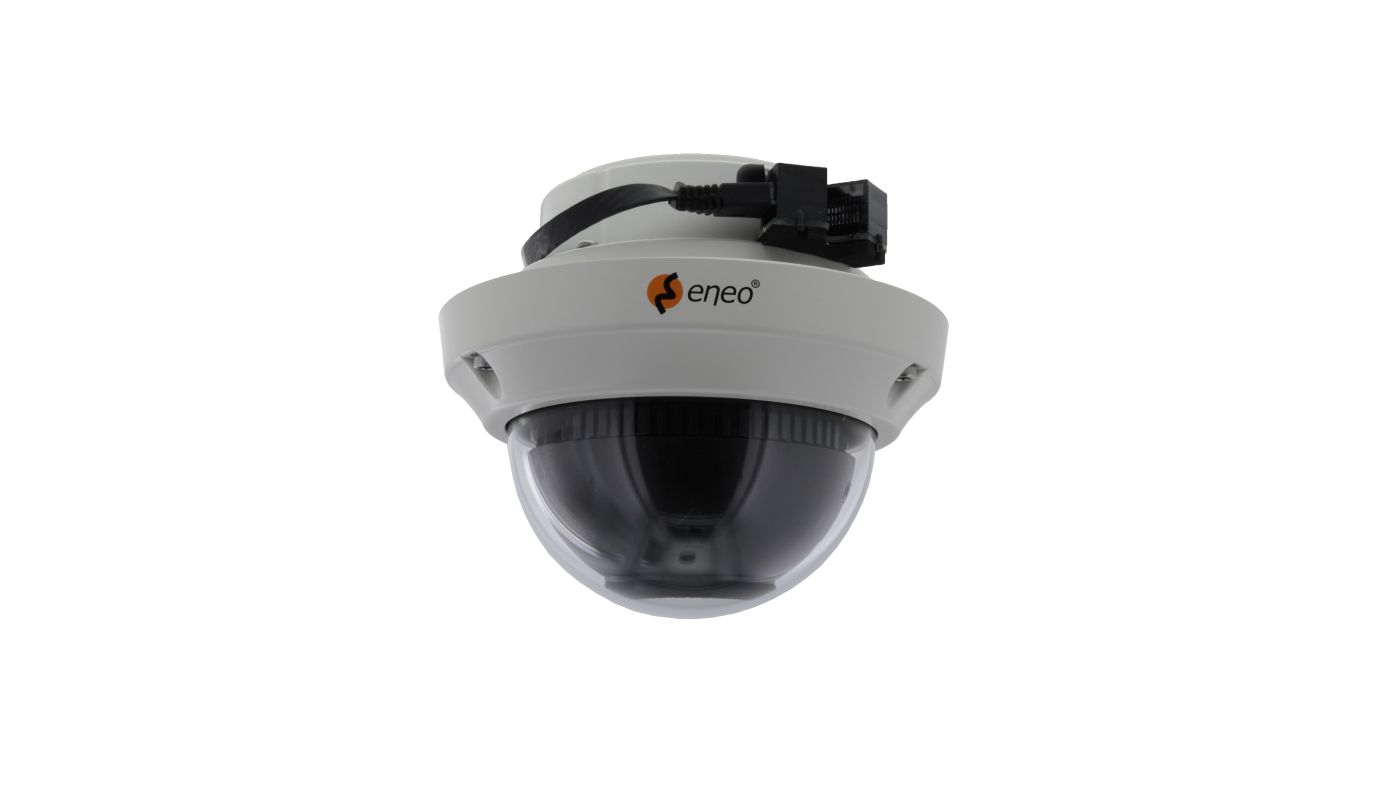

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 213020 |
|---|---|
| Series | eneo KN-Series |
| Alarm inputs | 1 |
|---|---|
| Alarm outputs | 1 |
| Analysis functions | Cross Counting (CC), Defog, Motion detection, Perimeter Intrusion Detection (PID), Tampering Detection (TD) |
| Audio | 2 Way Audio |
| Audio support | yes |
| Backlight Compensation | BLC, HLC |
| Blower | yes |
| Brand | eneo |
| Camera type | Dome |
| Certifications | IK10 |
| Color (bubble) | clear |
| Color (housing) | Pantone Cool Gray 1C |
| Day&Night switch | ICR |
| Digital Noise Reduction | yes |
| Digital Zoom | 16x |
| Dimensions (HxWxD) | 119x140mm |
| Ethernet interface | 100Base-TX, 10Base-T |
| Focal Length | 2,8 - 12 mm |
| Heater | yes |
| Horizontal Angle of View | 88 - 31° |
| Hosuing material | Aluminium |
| Housing | Outdoor |
| Illumination range | approx. 40m |
| Image Transmission Rate | 30 fps |
| Image resolution max. | 2048x1536 |
| Imager | CMOS |
| Internal storage | microSDHC card, microSDXC card |
| Iris Control | DC |
| Lens Type | Varifocal (motorized) |
| Low Speed Shutter | yes |
| MOD (Mininum Object Distance) | 0,5 m |
| Motion Detector | yes |
| Mounting | Ceiling mount, Wall mount |
| ONVIF | ONVIF Profile S |
| Operating temperature | -50°C ~ +50°C |
| Power consumption | 9.5W |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP67 |
| Remote configuration | Browser |
| Resolution Standard | 3 Megapixel |
| Sensitivity | 0,15 Lux at F1,4, 40 IRE |
| Sensor size | 1/2.8" |
| Serial interfaces | Ethernet |
| Supply voltage | 12VDC, 24VAC, PoE |
| System | True Day&Night |
| Vandal proof | yes |
| Vertical Angle of View | 64 - 23° |
| Video compression | H.264, M-JPEG |
| Video outputs | no |
| Weight | 1 kg |
| Wide Dynamic Range (WDR) | D-WDR |
| Zoom Factor | 4x |
| llumination | Infrared |
Main Features
- 1/2,8" Sony STARVIS CMOS
- Resolution max. 2048x1536
- 3 MP varifocal lens, motorized, 2.8~12 mm
- Push Focus for easy lens adjustment
- Cross Web Browsing (IE, Safari, Firefox, Chrome)
- Responsive Web Design, Zero configuration
- Triple Streaming: 2x H.264, 1x MJPEG
- VerticalView 90°/270° mode only H.264, HTML5 Playback
- Digital Wide Dynamic Range (D-WDR)
- LDC (Lens Distortion Correction), Defog function
- ONVIF conformity, PoE IEEE802.af
- 3-Axis Gimbal, IP67
