IPP-72A0030M0A
SKU 213541This article is no longer available Successor: IPP-83A0036MIA

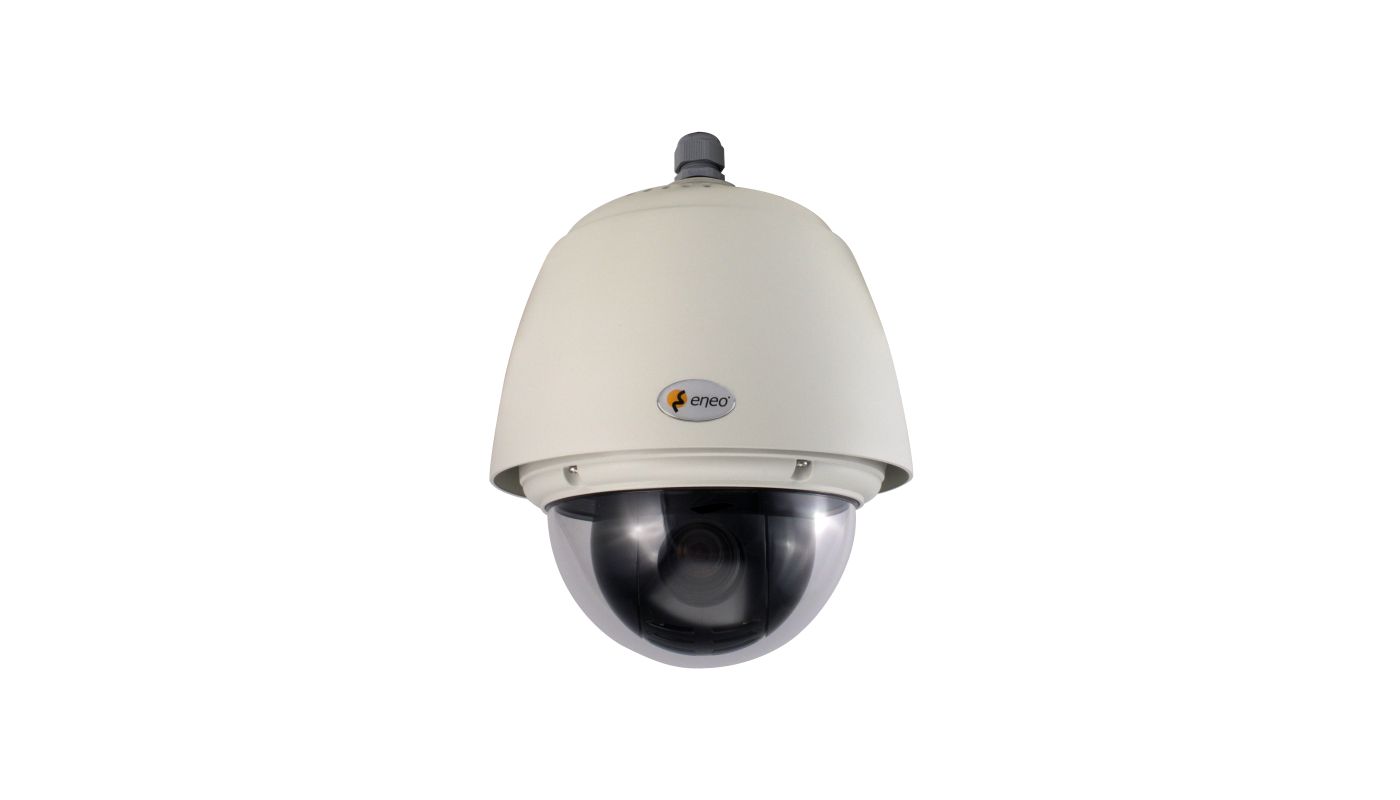

1/2.8" Network Dome, PTZ, 30x AF Zoom, Day&Night, 1920x1080, PoE, IP66, 12/24V
discontinued
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 213541 |
|---|---|
| Series | eneo SN-Series |
| Alarm inputs | 4 |
|---|---|
| Alarm outputs | 1 |
| Analysis functions | Defog, Field detection, Gesichtserkennung, Motion detection, Tampering protection, Trip wire plus object counting |
| Audio | 2 Way Audio |
| Audio support | yes |
| Backlight Compensation | BLC, HLC |
| Blower | yes |
| Brand | eneo |
| Camera type | PTZ |
| Certifications | IK10 |
| Color (bubble) | clear |
| Color (housing) | Pantone Cool Gray 1C |
| Day&Night switch | ICR |
| Detect (25px/m) | 64 - 2000 m |
| Digital Noise Reduction | yes |
| Digital Zoom | 16x |
| Dimensions (HxWxD) | 278x234mm |
| Ethernet interface | 100Base-TX, 10Base-T |
| Focal Length | 4,3 - 129,0 mm |
| Heater | yes |
| Horizontal Angle of View | 61,8 - 2,11° |
| Hosuing material | Aluminium |
| Housing | Outdoor |
| Identify (250 px/m) | 6 - 200 m |
| Image Transmission Rate | 60 fps |
| Image resolution max. | 1920x1080 |
| Imager | CMOS |
| Internal storage | microSDHC card, microSDXC card |
| Iris Control | DC |
| Lens Type | auto focus zoom |
| Low Speed Shutter | yes |
| MOD (Mininum Object Distance) | 1 m |
| Motion Detector | yes |
| Mounting | Ceiling mount, Wall mount |
| ONVIF | ONVIF Profile S |
| Observe (62 px/m) | 25 - 840 m |
| Operating temperature | -50°C ~ +65°C |
| Power consumption | (with heather), 13W, 50W, w./o. heater |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP66 |
| Recognize (125 px/m) | 12 - 400 m |
| Remote configuration | Browser |
| Resolution Standard | HD 1080p |
| Rotation range | 360° |
| Sensitivity | 0,35 Lux at F1,6, 50 IRE |
| Sensor size | 1/2.8" |
| Serial interfaces | Ethernet |
| Speed (manual) | 380°/Sek. |
| Supply voltage | 12VDC, 24VAC, PoE |
| System | True Day&Night |
| Vandal proof | yes |
| Vertical Angle of View | 36,4 - 1,29° |
| Video compression | H.264, M-JPEG |
| Weight | 3.3kg |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Zoom Factor | 30x |
| llumination | no |
Main Features
- 1/2.8" Sony CMOS-Sensor
- 30x AF Zoom, 4.3~129mm / 16x Digital
- Full HD 1920x1080 pixels, 1080p@50/60fps
- Compression H.264/MJPEG, Web Casting
- Digital Noise Reduction (DNR)
- VCA Video Analytic
- Real time WDR (Wide Dynamic Range) 25/30fps
- Digital Image Stabilization (DIS)
- Privacy zones
- Alarm in- and outputs
- ONVIF conformity
