IPP-82A0030MIA
SKU 212715This article is no longer available Successor: IPP-83A0036MIA

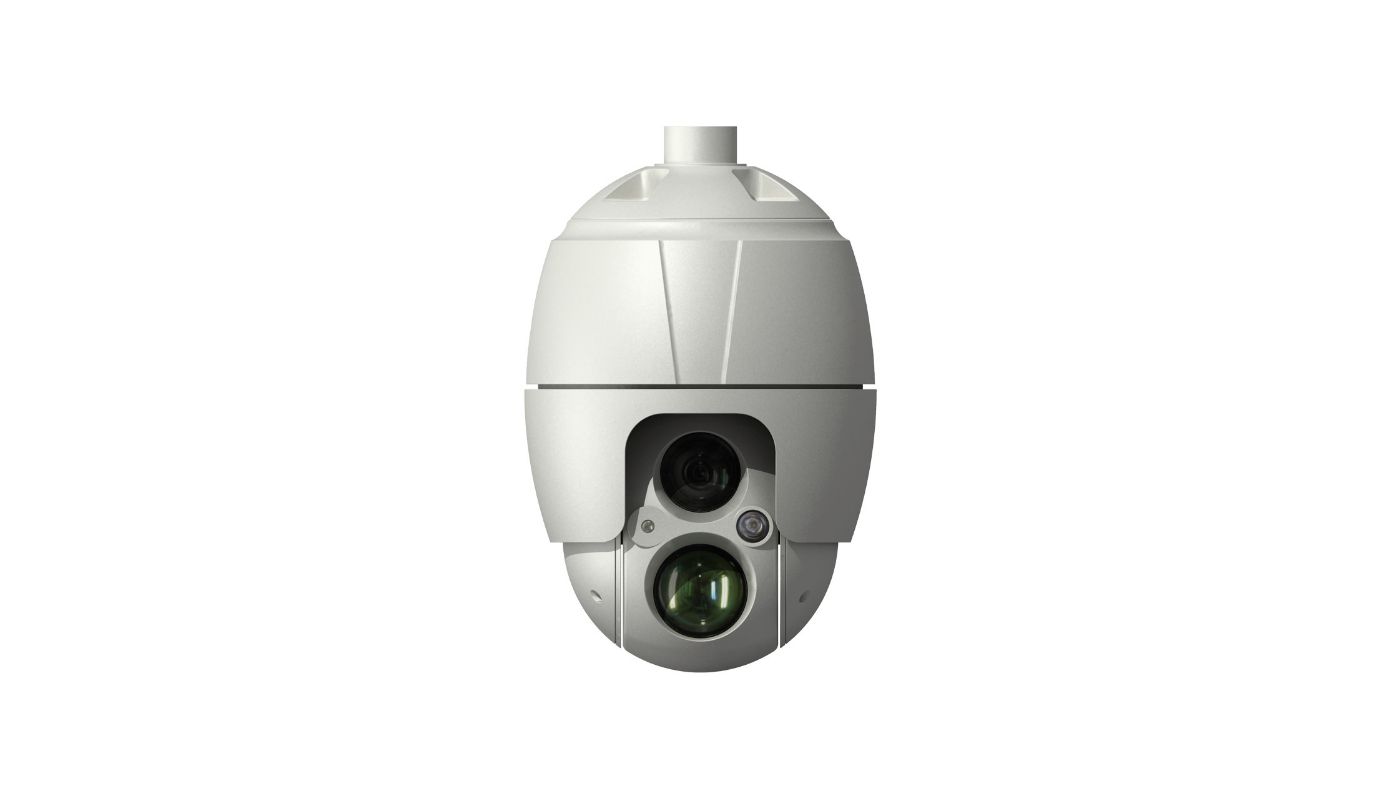

1/2,8" Network Dome, 1920x1080, PTZ, Day&Night, 4,3-129mm, Infrared, IP66
discontinued
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 212715 |
|---|---|
| Series | eneo SN-Series |
| Alarm inputs | 4 |
|---|---|
| Alarm outputs | 1 |
| Analysis functions | Defog, Field detection, Gesichtserkennung, Motion detection, Tampering protection, Trip wire plus object counting |
| Audio | 2 Way Audio |
| Audio support | yes |
| Backlight Compensation | BLC, HLC |
| Brand | eneo |
| Camera type | PTZ |
| Color (housing) | Pantone Cool Gray 1C |
| Day&Night switch | ICR |
| Digital Noise Reduction | yes |
| Digital Zoom | 16x |
| Dimensions (HxWxD) | 315x201.38mm |
| Ethernet interface | 100Base-TX, 10Base-T |
| Focal Length | 4,3 - 129,0 mm |
| Heater | no |
| Horizontal Angle of View | 61,8 - 2,11° |
| Hosuing material | Aluminium, Plastic |
| Housing | Outdoor |
| Illumination range | approx. 300m |
| Image Transmission Rate | 60 fps |
| Image resolution max. | 1920x1080 |
| Imager | CMOS |
| Internal storage | microSDHC card, microSDXC card |
| Iris Control | DC |
| Lens Type | auto focus zoom |
| Low Speed Shutter | yes |
| MOD (Mininum Object Distance) | 1 m |
| Motion Detector | yes |
| Mounting | Ceiling mount, Wall mount |
| ONVIF | ONVIF Profile S |
| Operating temperature | -30°C ~ 65°C |
| Power consumption | 28W |
| Power over Ethernet | IEEE 802.3at |
| Protection rating | IP66 |
| Remote configuration | Browser |
| Resolution Standard | HD 1080p |
| Rotation range | 360° |
| Sensitivity | 0,35 Lux at F1,6, 50 IRE |
| Sensor size | 1/2.8" |
| Serial interfaces | Ethernet |
| Speed (manual) | 380°/Sek. |
| Supply voltage | 12VDC, PoE |
| System | True Day&Night |
| Vandal proof | no |
| Vertical Angle of View | 36,4 - 1,29° |
| Video compression | H.264, M-JPEG |
| Weight | 4.9kg |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Zoom Factor | 30x |
| llumination | Infrared |
Main Features
- 1/2.8" Sony CMOS-Sensor
- 30x AF Zoom, 4,3~129mm / Digital zoom
- Full HD 1920x1080 pixels, 1080p@50/60fps
- Compression H.264/MJPEG, Web Casting
- Digital noise reduction (DNR)
- VCA Video Analytic
- Zoom synchronized & fixed IR LEDs
- Real time WDR (Wide Dynamic Range) 25/30fps
- DIS (Digital Image Stabilization)
- Privacy zones
- Alarm in- and outputs, micro SD card slot
- High-PoE midspan included
