MAM-5MM1001M0A
SKU 220299
Converter, HD-CVI, HD-TVI, AHD, Composite to HDMI, VGA, Composite, Indoor
For Prices and Availability please login.

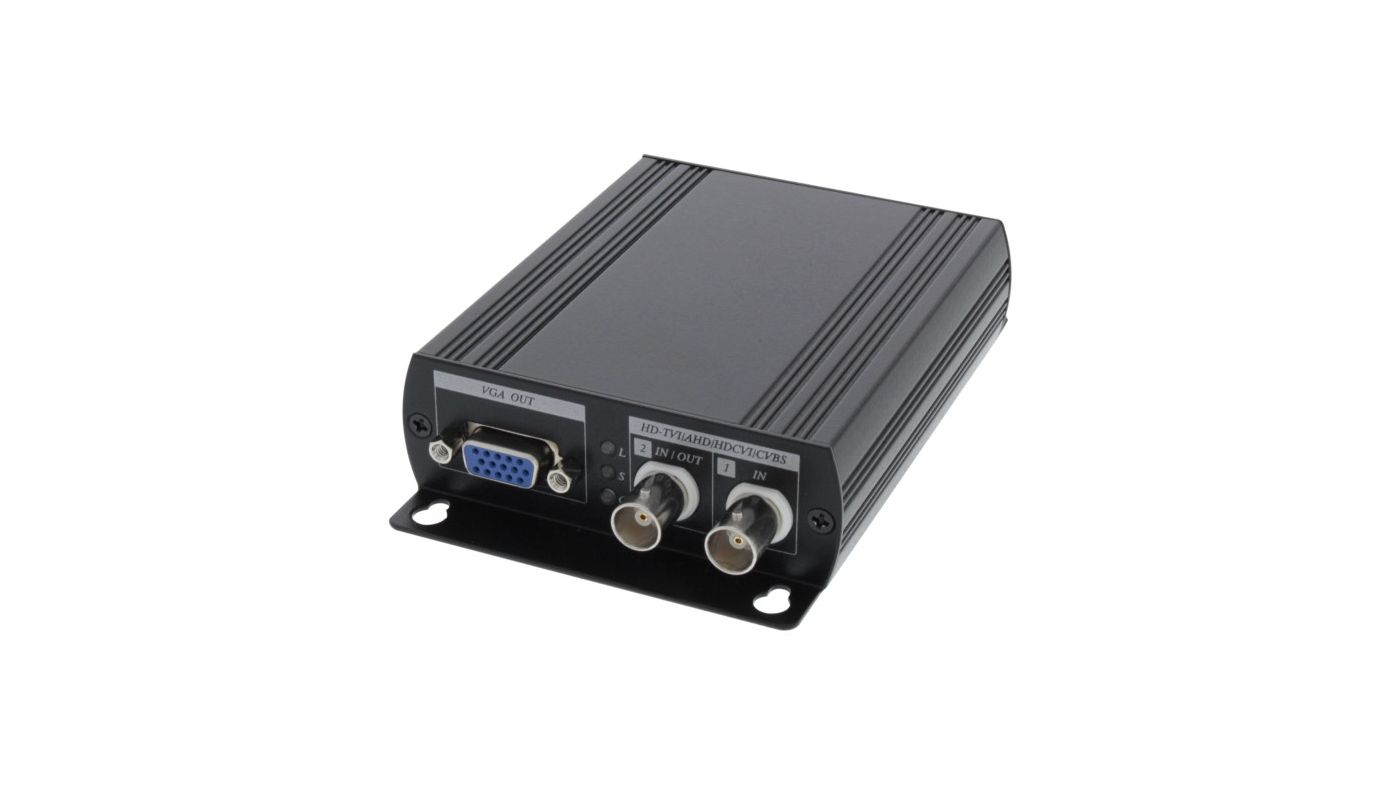

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 220299 |
|---|---|
| Series | eneo COAXIZE |
| Brand | eneo |
|---|---|
| Color | anthracite / black |
| Dimensions (HxWxD) | 30x88x130mm |
| Housing | aluminium |
| Image resolution max. | 1920x1080 |
| Power consumption | 5W |
| Signal format | AHD @ 2MP, Composite (FBAS), CVI @ 2MP, HD-TVI @ 2MP |
| Supply voltage | 12VDC |
| Video inputs (amount) | 1 |
| Video inputs (type) | AHD, composite (CVBS), CVI, HD-TVI |
| Video outputs | BNC, HDMI, VGA |
| Weight | 275g |
Main Features
- Converter HD-TVI, AHD, CVI, CVBS to HDMI, VGA, CVBS
- Display simultaneously HDMI, VGA and CVBS signal
- HD-TVI, AHD, CVI input: 720p@25/30/50/60Hz, 1080p@25/30Hz
- HDMI, VGA output: 480p, 576p,720p, 1080i,1080p
- CVBS output: PAL/NTSC
- Power LED, Link LED
- Built in OSD to display input/output setting
- PIP display under dual camera input mode
Downloads
-
Data sheet with specifications generated live from the product database
-
Detailed manual for this product
-
Declaration of Conformity in German and English
-
Technical data as Word document, generated live from the product database
-
Open Source Software License Information
-
Original product information from the manufacturer
