MAM-5MM2203M0A
SKU 236125

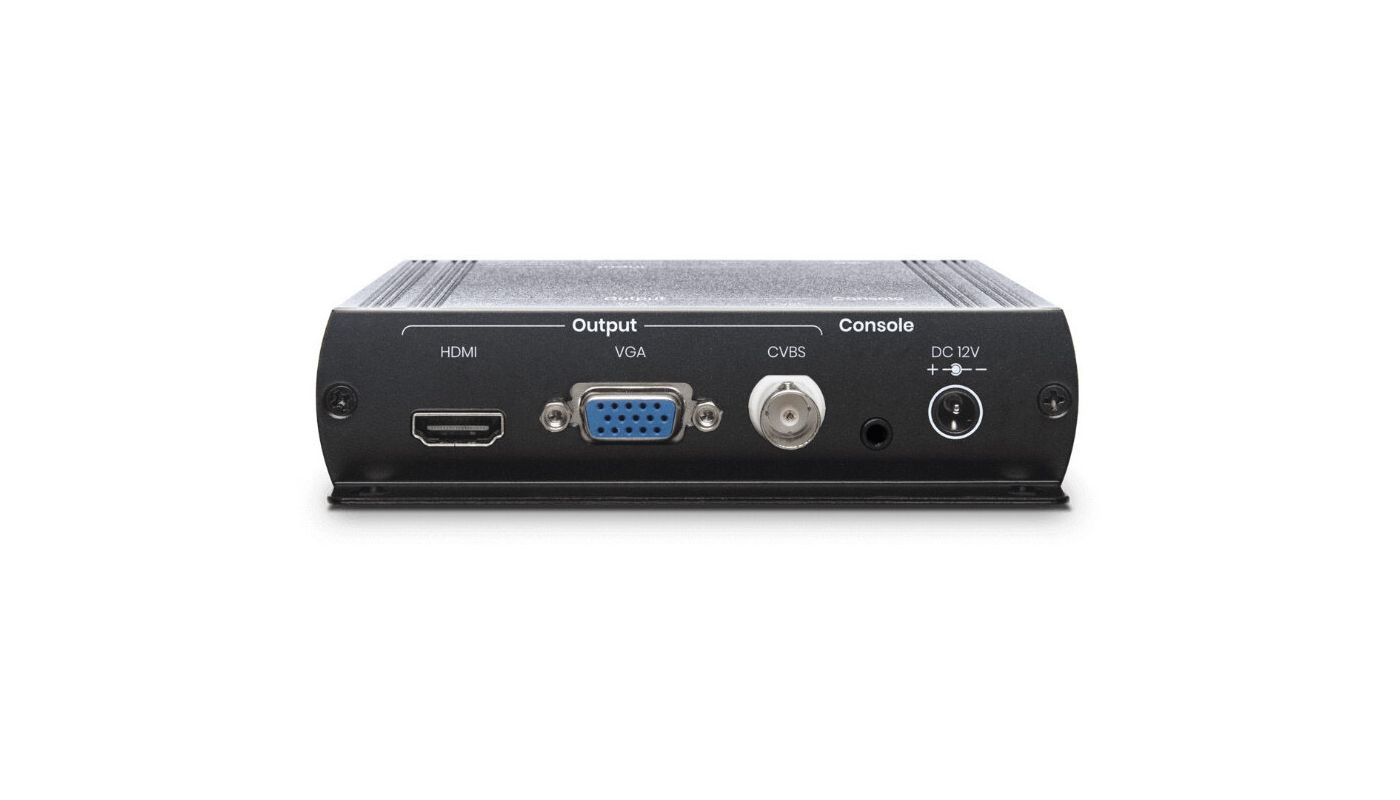

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 236125 |
|---|---|
| Series | eneo COAXIZE |
| Brand | eneo |
|---|---|
| Color | anthracite / black |
| Dimensions (HxWxD) | 125x130x30mm |
| Housing | aluminium |
| Image resolution max. | 3840x2160 |
| Power consumption | 3.8W |
| Signal format | AHD @ 8MP, CVI @ 8MP, HD-TVI @ 8MP |
| Supply voltage | 12VDC |
| Video inputs (amount) | 2 |
| Video inputs (type) | AHD, CVI, HD-TVI |
| Video outputs | BNC, HDMI, VGA |
| Weight | 370g |
Main Features
- Video input resolution up to 4K/ 8MP
- Video output resolution up to 4K for HDMI,
- 1080p for VGA and NTSC/PAL for CVBS.
- Built-in loop-out for daisy chain or a DVR.
- Built-in 3.5mm audio input
- Built-in RS232 interface
- Supports PIP (Picture in Picture).
- Supports OSD (On Screen Display)
- Supports UTC (Up the Coaxial)
