MEB-55M2812M0A

SKU 233697

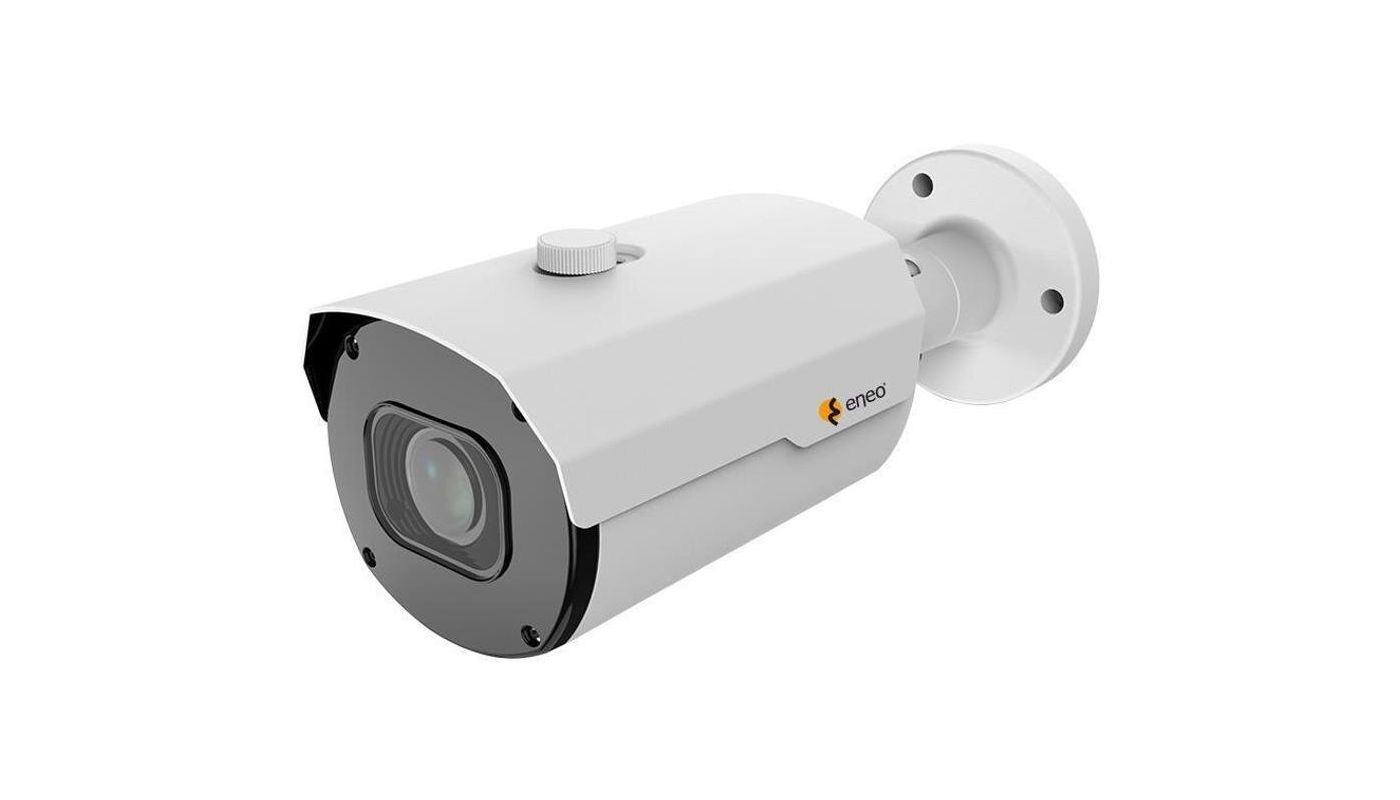

1/2.8" HD Camera, Day&Night, 2592x1944, Infrared 2,7-13,5mm, 12VDC, IP67
Data sheet

Specifications

Manufacturer order number 233697
EAN/GTIN 4260229840320
Series eneo COAXIZE, eneo IN-Series
Alarm inputs nein
Alarm outputs no
Aperture range (F) F1.8~F3.3
Backlight Compensation BLC
Brand eneo
Camera type Bullet
Color (housing) Pantone P 179-1, RAL9003
Day&Night switch ICR
Detect (25px/m) 62,5 - 260,3 m
Digital Noise Reduction 2D-DNR, 3D-DNR
Digital Zoom no
Dimensions (HxWxD) 83,88x87,4x242mm
Focal Length 2,7 - 13,5 mm
Frame rate 20fps @ 2592x1944p, 25/30fps @ 1920x1080p, 25/30fps @ 2560x1440p
Heater no
Horizontal Angle of View 110,6 - 32,6°
Hosuing material Aluminium
Housing Outdoor
Identify (250 px/m) 5,2 - 25,6 m
Illumination range approx. 35m
Imager CMOS
Iris Control DC
Lens Type Varifocal (motorized)
Low Speed Shutter no
MOD (Mininum Object Distance) 0,8 m
Motion Detector no
Mounting Ceiling mount, Wall mount
Observe (62 px/m) 24,3 - 104,5 m
Operating temperature -30°C ~ +55°C
Power consumption 6.5W
Protection rating IP67
Recognize (125 px/m) 11,5 - 52,2 m
Resolution Pixels 1920x1080, 2560x1440, 2592x1944, 960x540
Resolution Pixels 1920x1080, 2560x1440, 2592x1944, 960x540
Sensitivity 0,05 Lux at F1,2
Sensor size 1/2.8"
Serial interfaces Coaxitron (HD Protocol)
Signal format AHD @ 2MP, AHD @ 4MP, AHD @ 5MP, Composite (FBAS), CVI @ 2MP, CVI @ 4MP, HD-TVI @ 2MP, HD-TVI @ 4MP, HD-TVI @ 5MP
Supply voltage 12VDC
System True Day&Night
Vandal proof no
Vertical Angle of View 57,3 - 18,3°
Video outputs AHD, Composite (CVBS), HD-TVI
Weight 745g
Wide Dynamic Range (WDR) WDR 120dB
Zoom Factor 4x
llumination Infrared

Main Features

  • 1/2.8" CMOS Image Sensor
  • Resolution max. 2592x1944
  • multi-signal: HD-TVI, AHD, CVI, CVBS
  • 2,7-13,5 mm lens with variable focal length (motorized)
  • Day/night switching (ICR)
  • 2D+3D DNR (Digital Noise Reduction)
  • Automatic exposure control (1/30s~1/50,000s)
  • Lens shading correction
  • IR LED illumination integrated
  • For outdoor use degree of protection IP67
  • 12VDC power supply, NDAA compliant
