AI-driven video security by eneo

The AI ​​functions of the new eneo IN cameras and recorders proactively ensure security and provide valuable information about customer behavior. In this way, eneo AI solutions can help to optimize staff deployment, improve the shopping experience and increase sales. For example, through intelligent queue management or targeted product placement.

In addition, eneo AI cameras with functions such as mask detection and crowd density measurement support pandemic protection measures and hygiene concepts. And that pleases security personnel, branch managers and customers. From retail to public transport.

The new cameras of the IN series

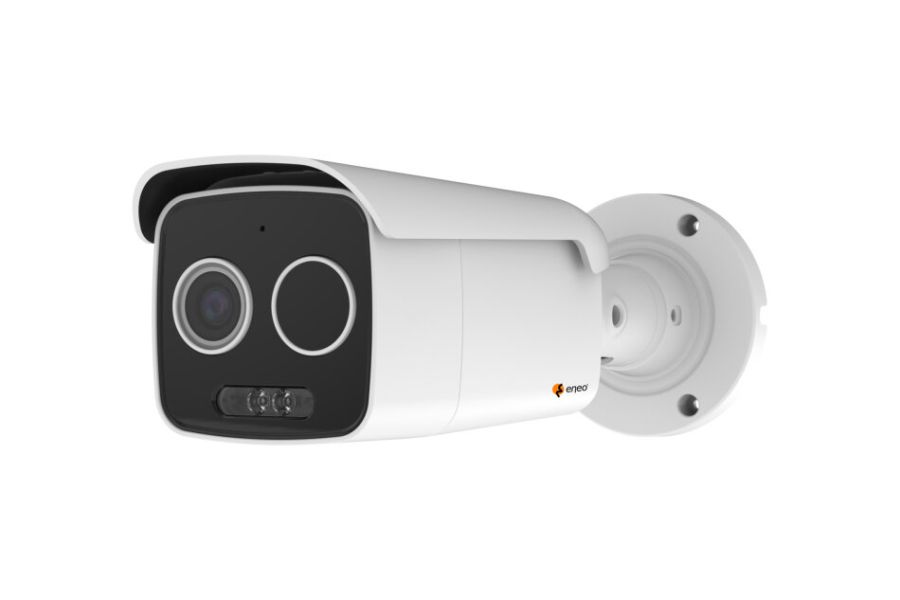

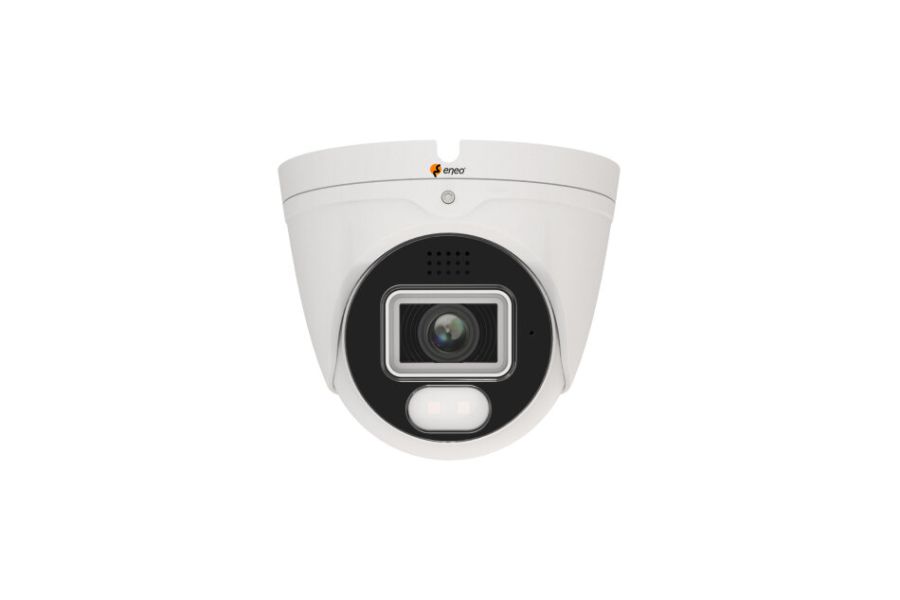

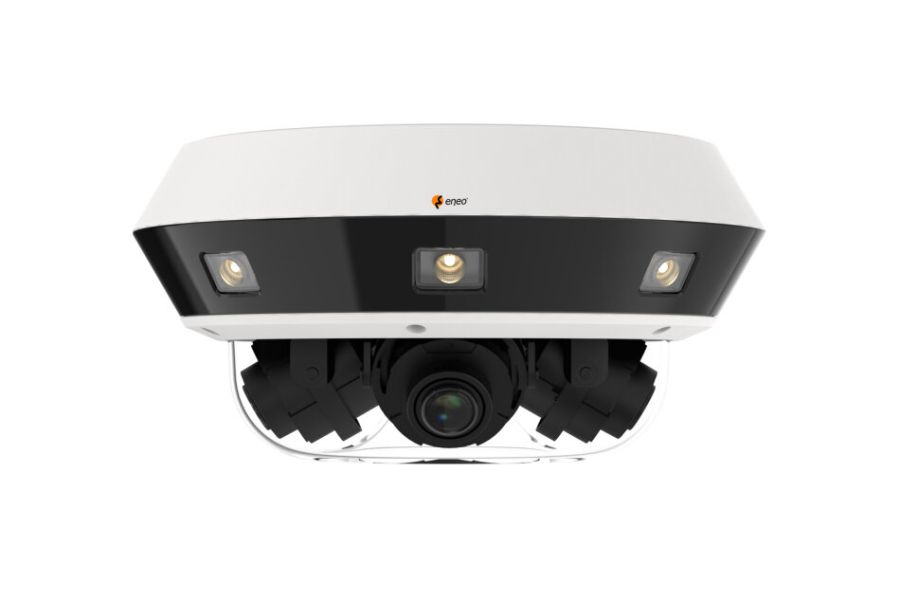

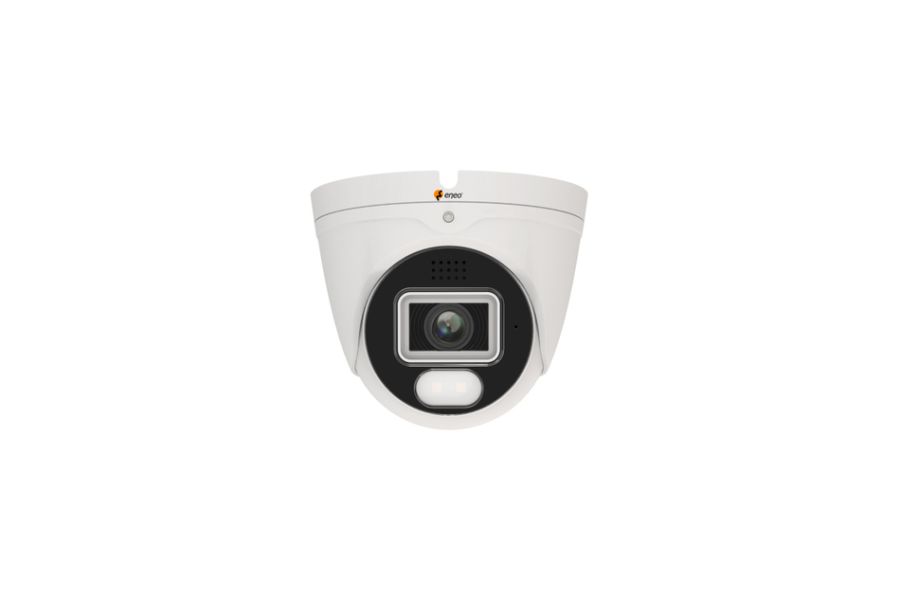

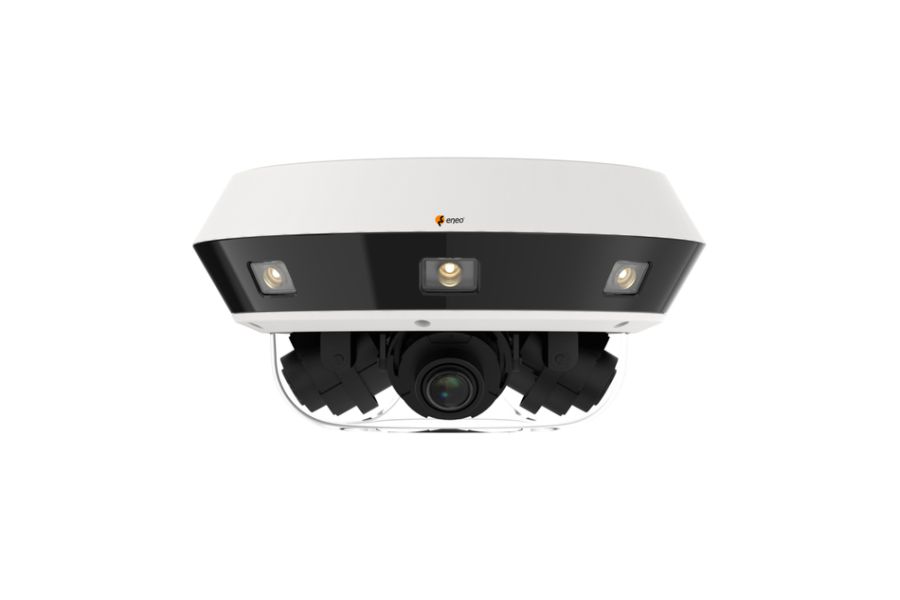

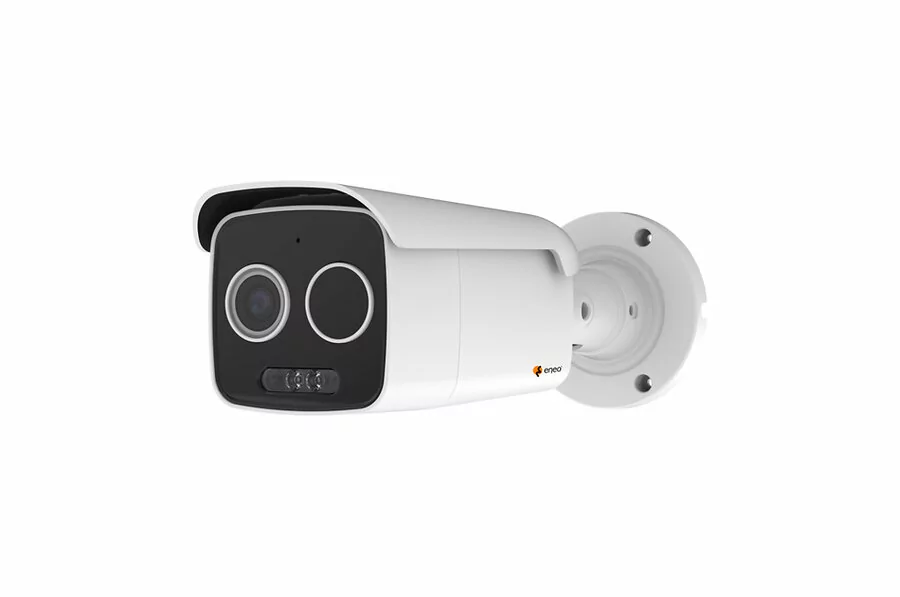

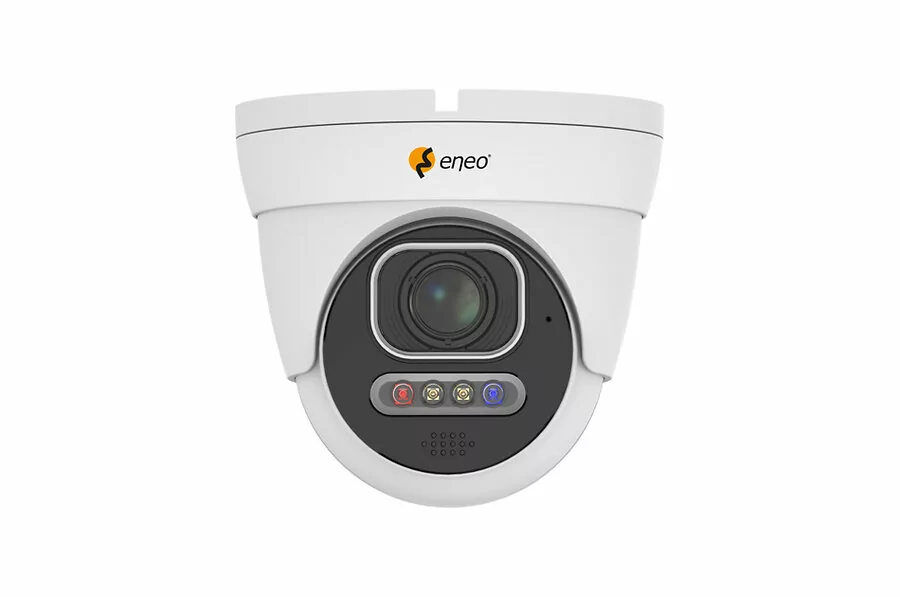

New in the eneo IN series: The turret dome IND-58F0028MTLA with a resolution of 3840x2160 pixels at 30fps, advanced AI analysis features, and with white light LED illumination. The multisensor camera INM-78M2812M0A is characterized by four 1/1.8" CMOS sensors for multidimensional surveillance, offers a maximum resolution of 8MP, has advanced AI analysis features including object classification, and is also equipped with IR and white light illumination. The IP hybrid camera INT-8SF0003M0A combines an optical resolution of 2592x1944 pixels with a thermal resolution of 256x192 pixels. AI analysis features are also on board here, as well as specialized functions such as fire detection and temperature alarms. And the INB-58F0002M0PA is a 180° panoramic ultra-wide-angle camera that offers comprehensive surveillance capabilities through its horizontal field of view and can replace several standard cameras.

The AI-based video analytics of the smart cameras and recorders greatly expand the capabilities of video security systems. Smart security functions such as intelligent area monitoring, line detection, stationary object detection, face recognition, person and vehicle recognition and sound detection enable security personnel to defuse critical situations before they arise. And this is largely automated, as the bidirectional audio function of the cameras supports the playback of recorded warnings or alarm signals in the monitored area, for example when entering a defined danger area or blocked escape routes and emergency exits. The mask recognition and crowd density measurement functions also supplement and support pandemic protection measures and hygiene concepts.

Retail intelligence functions such as heat maps, cross counting and intelligent queue management enable more efficient processes, more effective marketing, better service quality and more sales. The integrated license plate recognition can be used for automatic access control as well as customer statistics.
The possible applications of AI-based video analytics are diverse and range from solutions for retail and local public transport to construction site, stadium or event security.

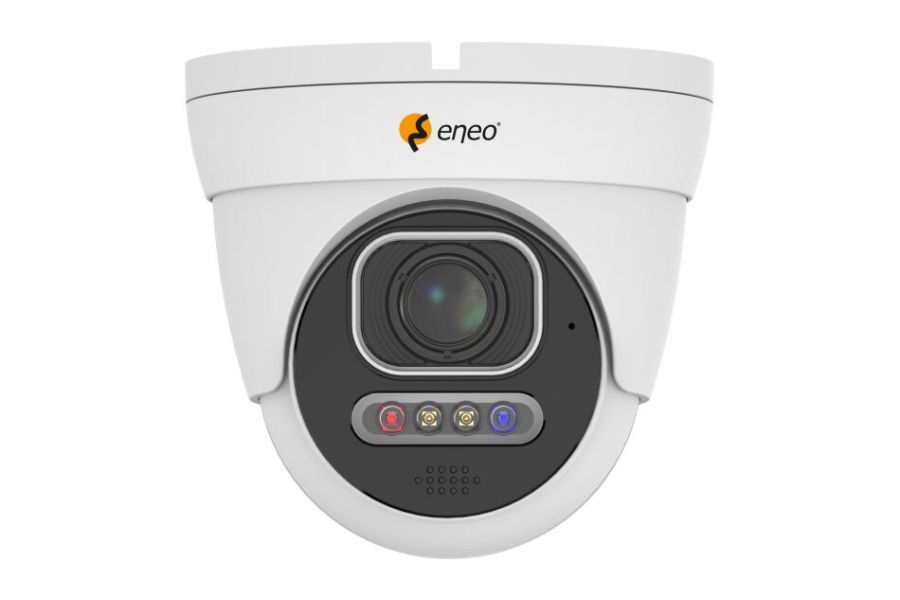

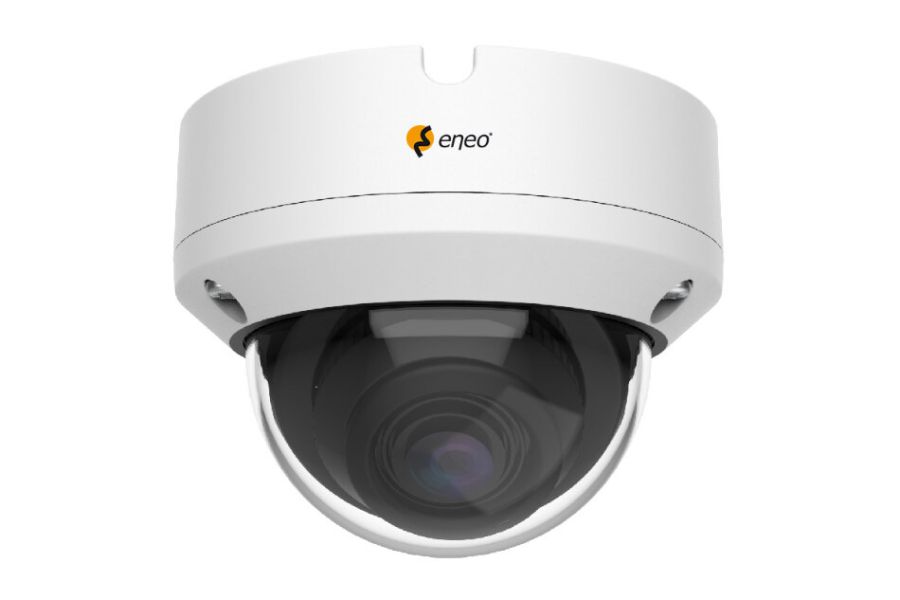

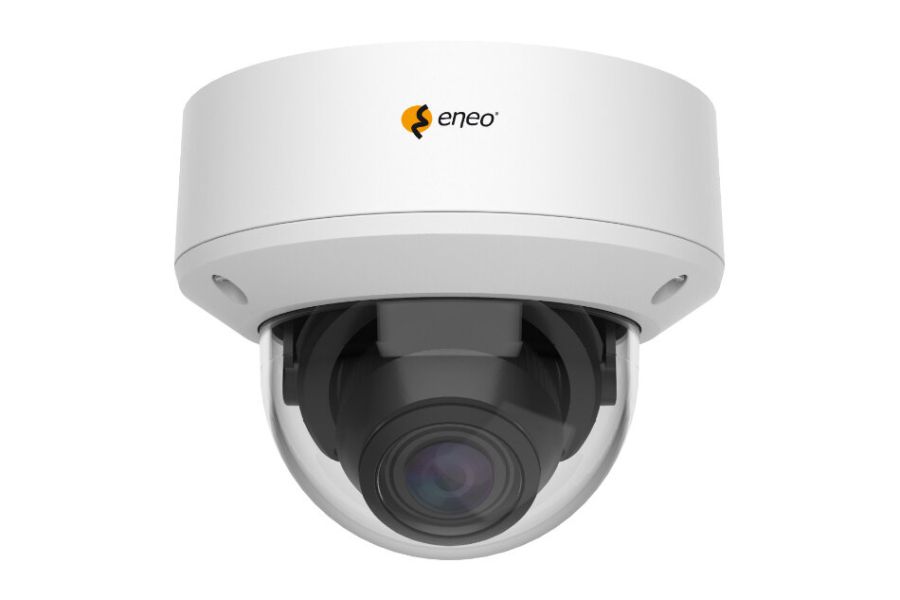

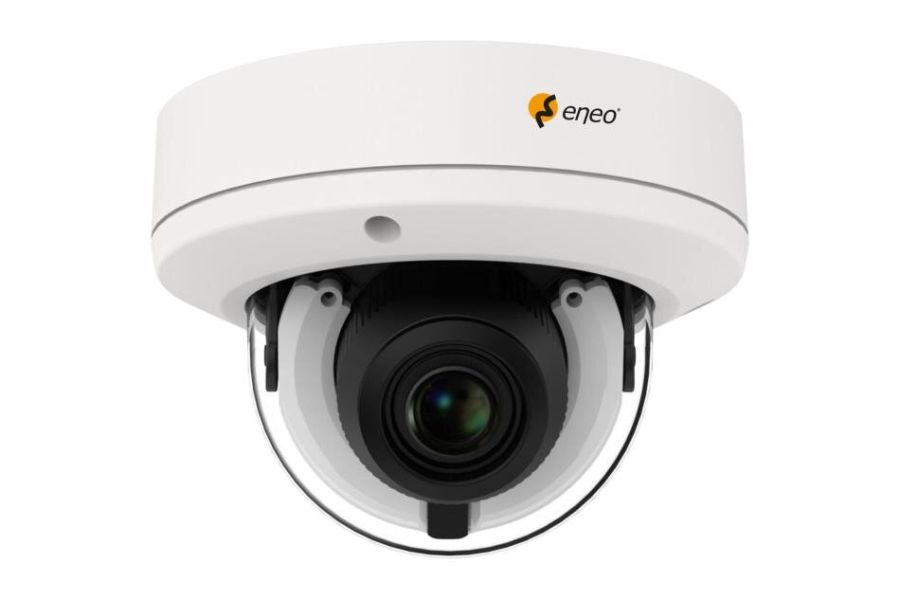

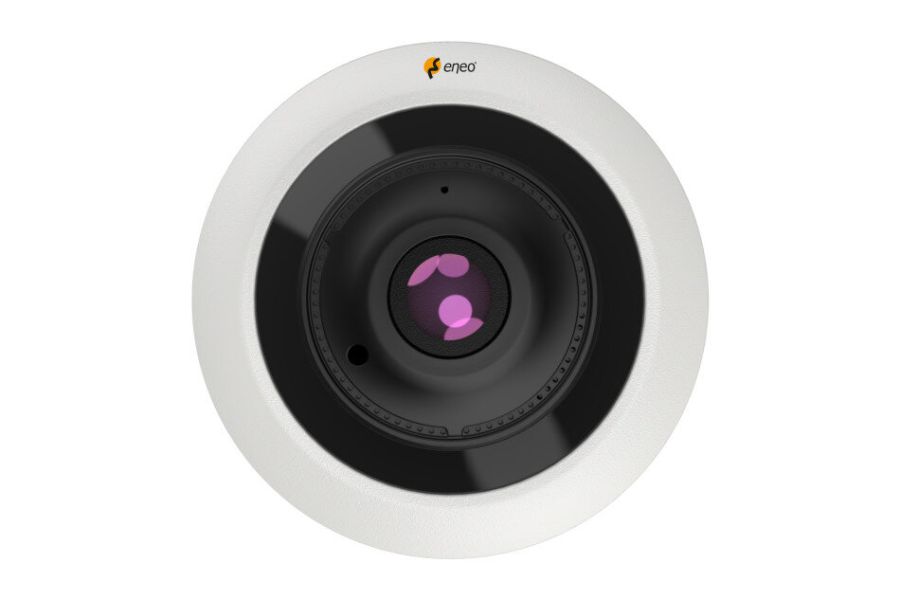

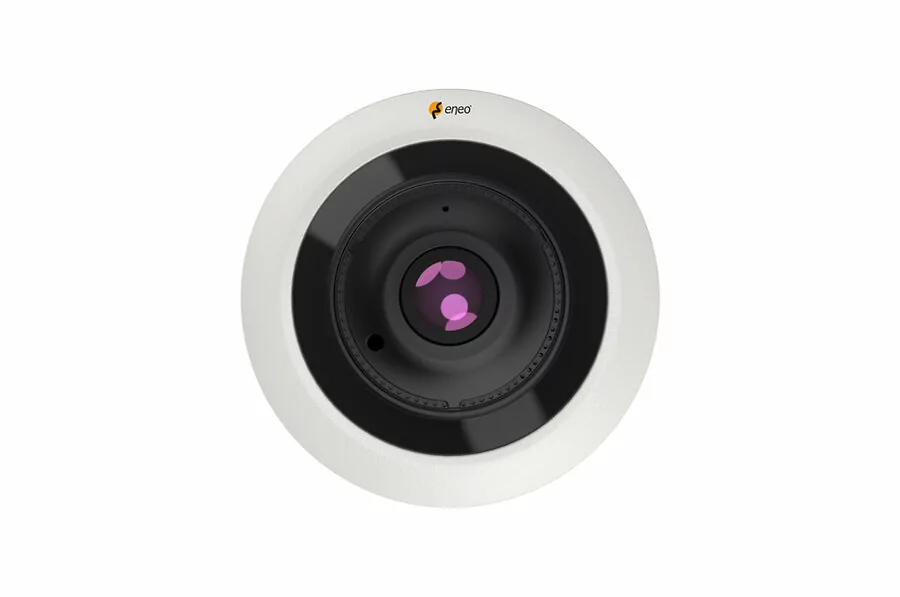

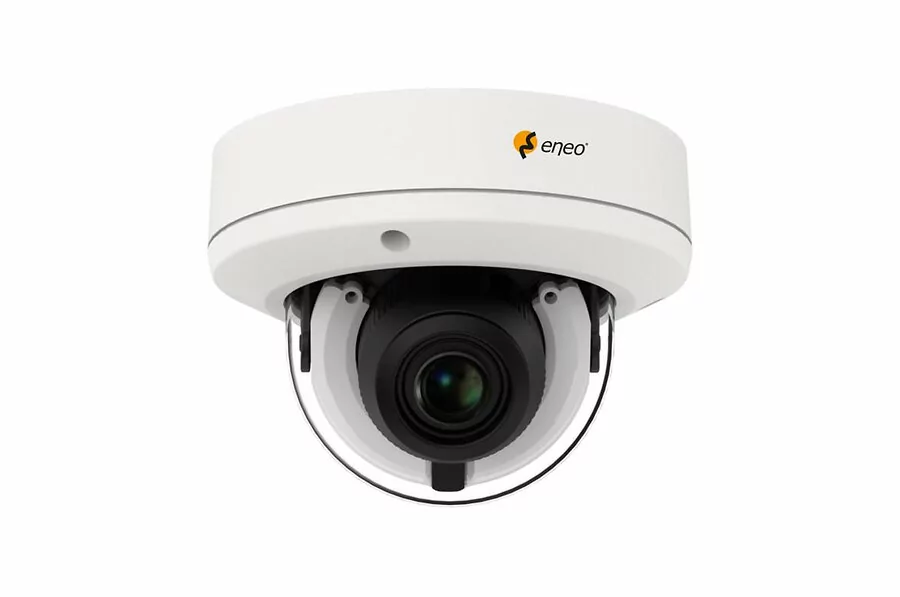

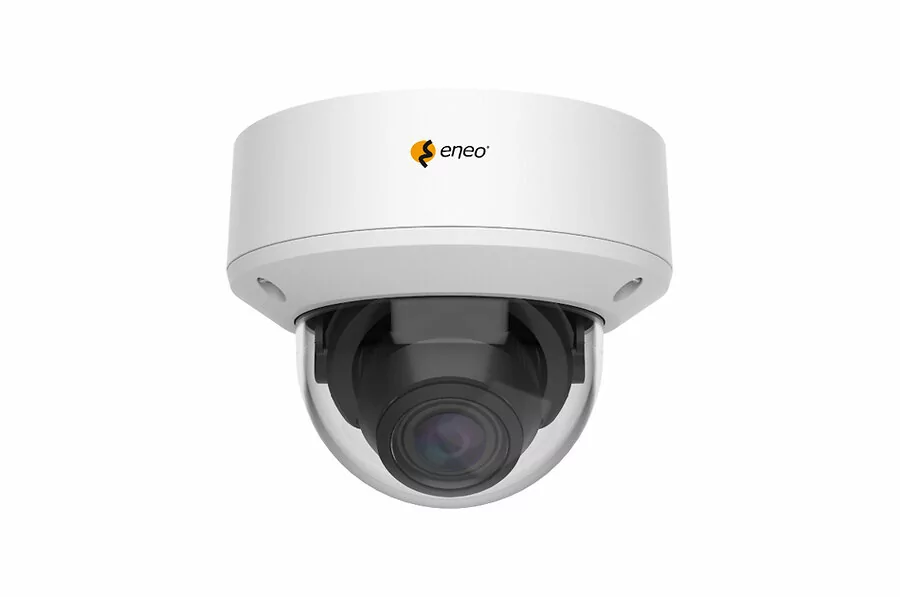

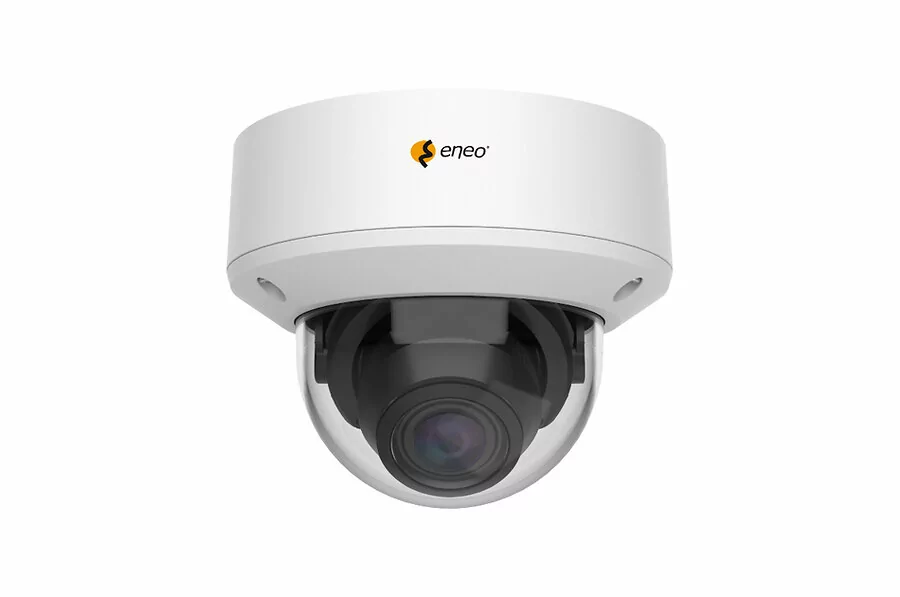

Dome cameras are available in the eneo IN series in various sizes and form factors and with resolutions from Full HD to 8MP. It starts with an AI-based mini flat dome and mini dome as well as 5 regular-sized dome cameras. These include two Color Night Vision AI domes (IND-65M2812MFA and IND-68M2812MFA), whose extremely light-sensitive image sensors produce color images even in the dark. In addition to the LED infrared lighting, these two cameras also have integrated white light lighting, which can be used to illuminate the surveillance area in the event of an alarm. All common Domes correspond to the protection class IP69 and achieve the impact resistance level IK10.

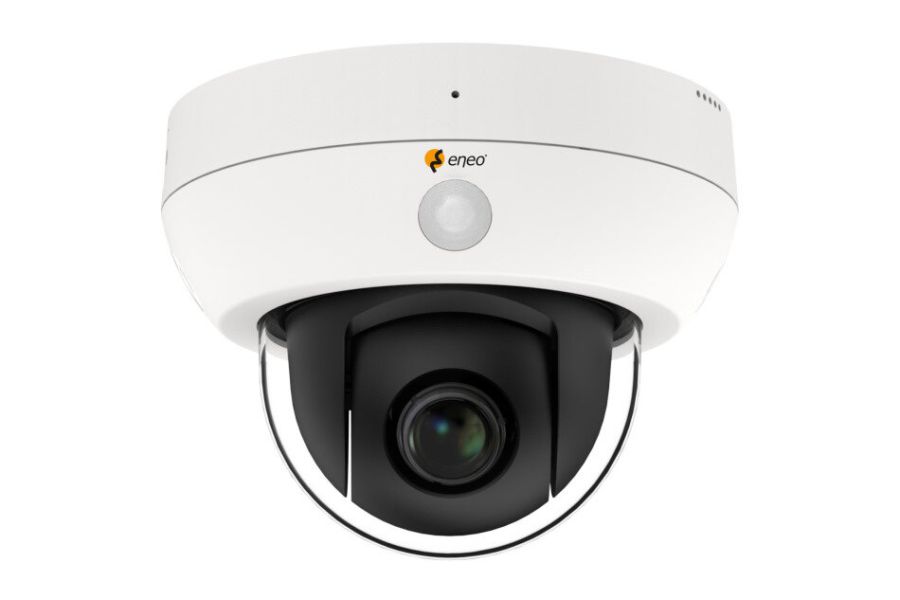

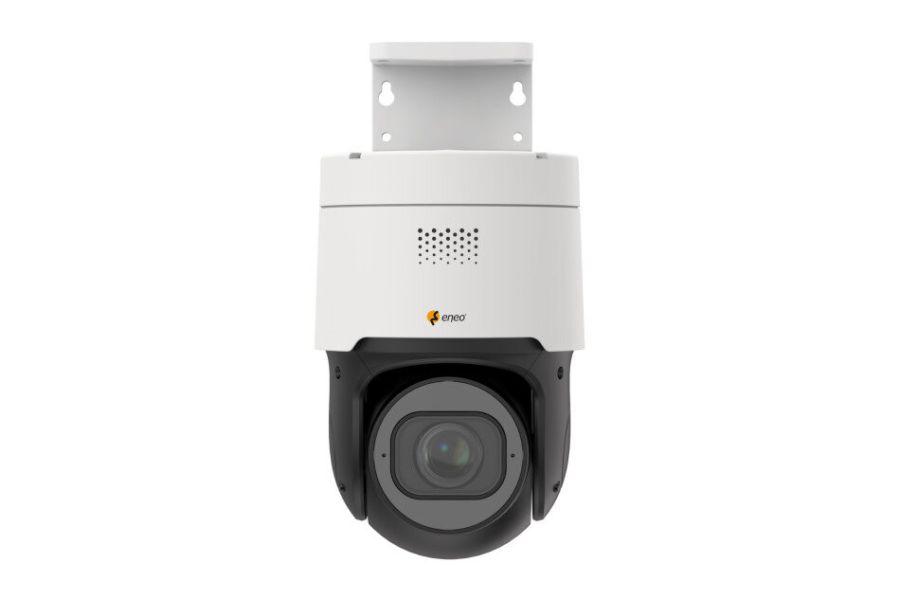

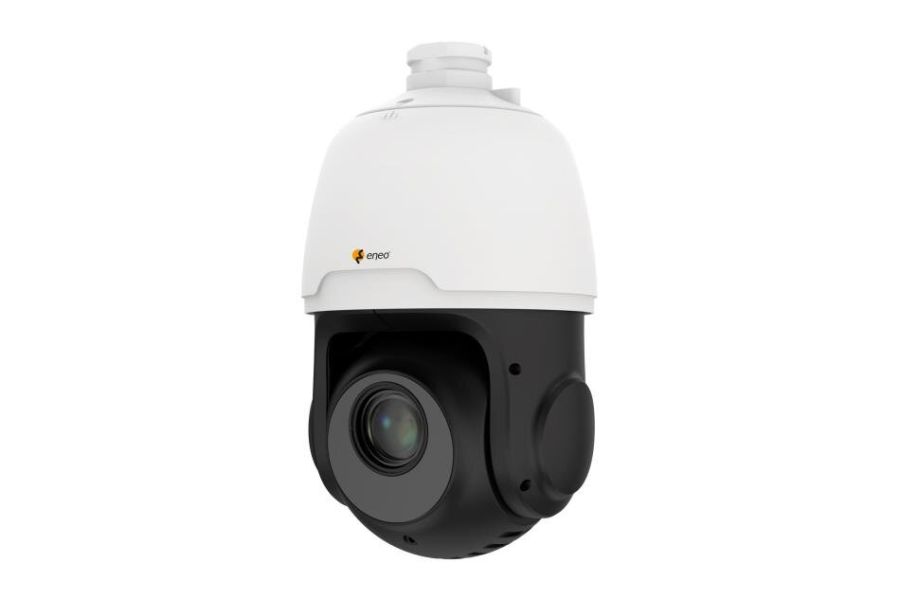

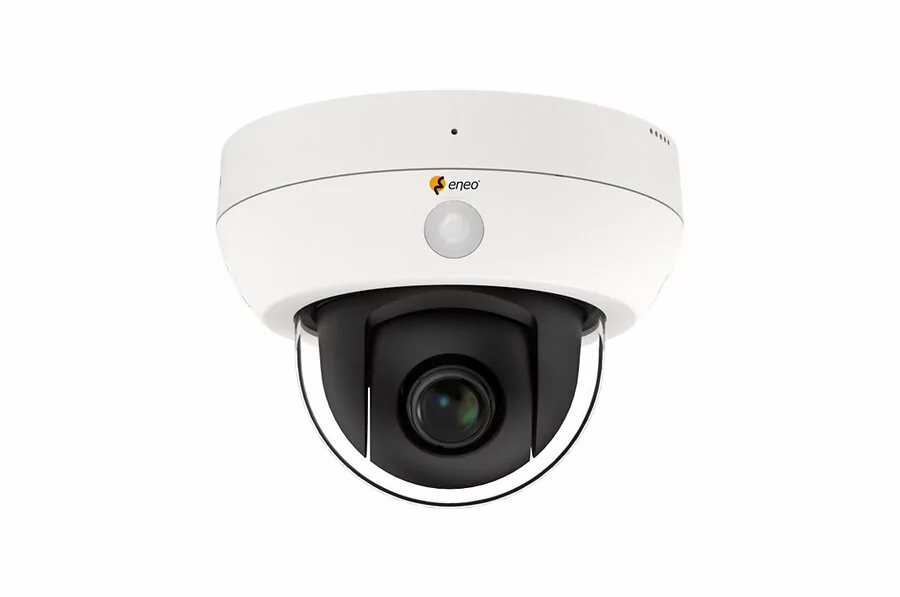

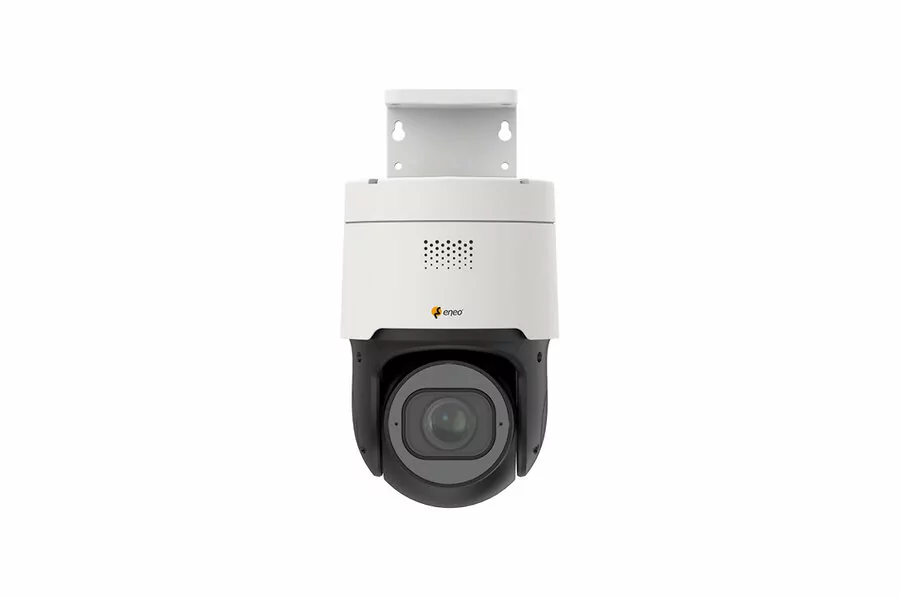

A PTZ camera and a very compact mini PTZ camera with an integrated alarm light and siren complete the camera line-up for the launch of the new IN product family. The PTZ dome INP-75A0033MIA comes with a motorized 33x autofocus zoom lens and a focal length range of 4.3-142mm. The mini PTZ dome INP-58M2812M0A has a motorized varifocal lens with a focal length of 2.8-12mm.

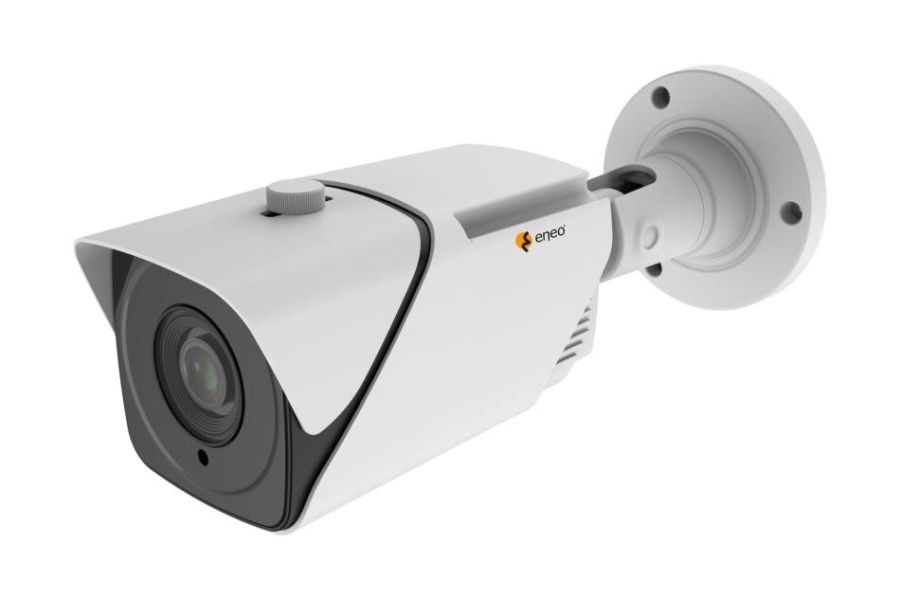

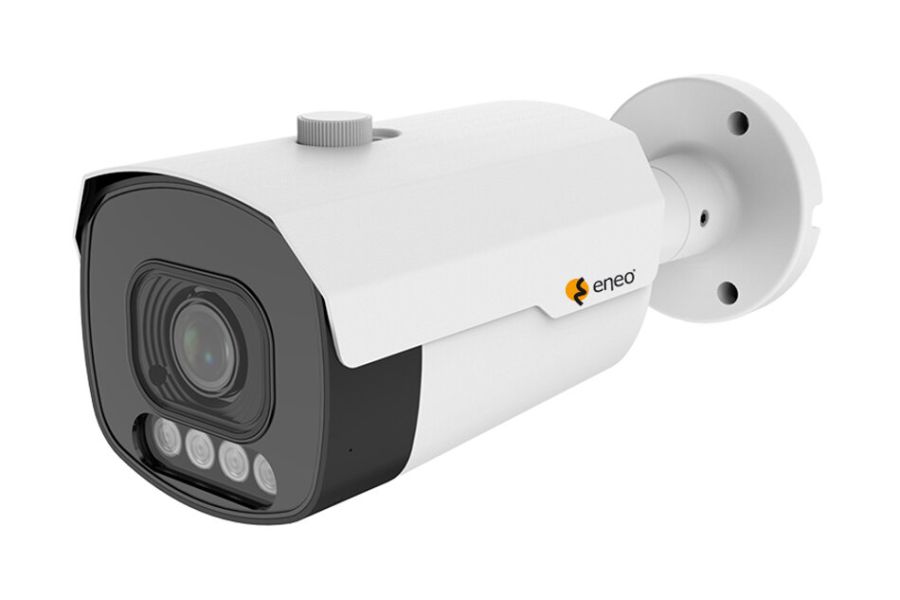

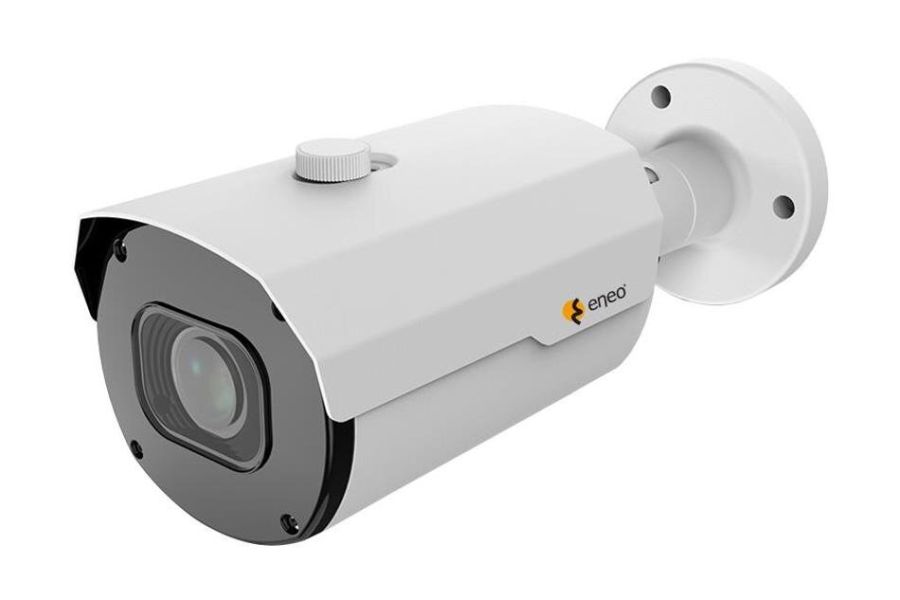

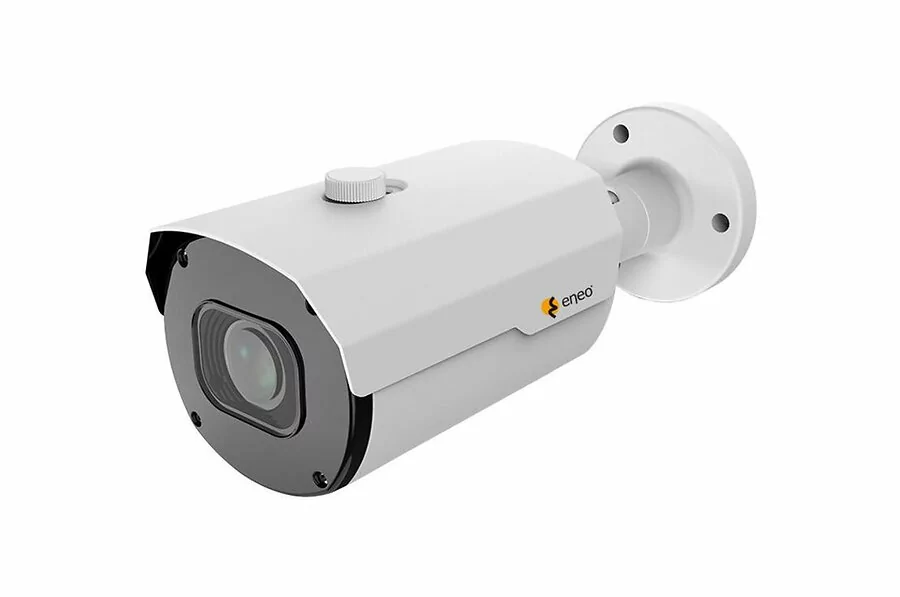

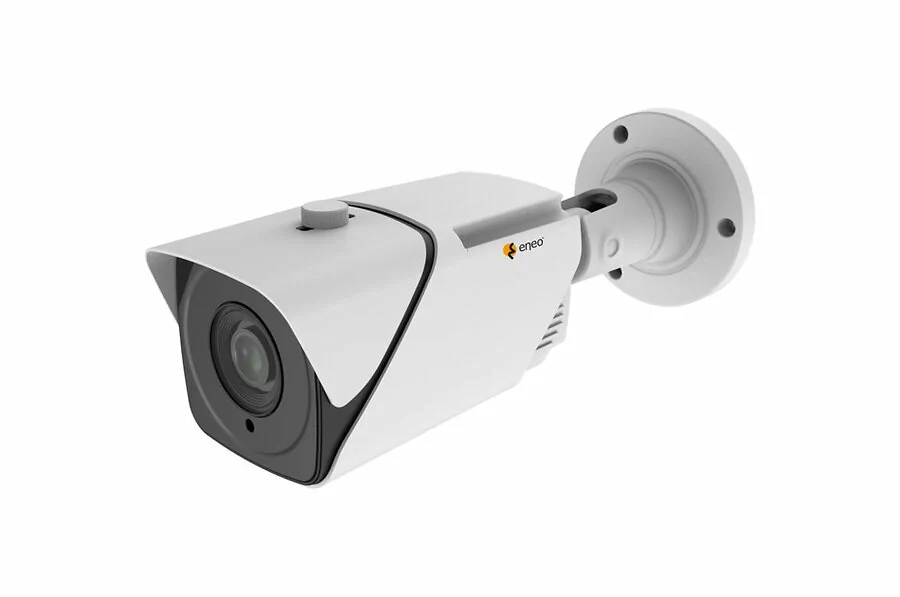

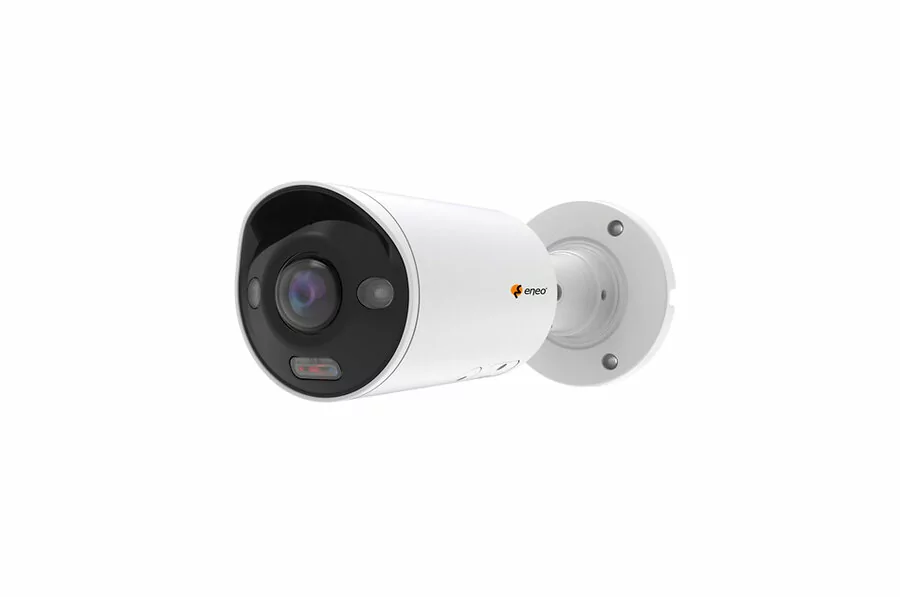

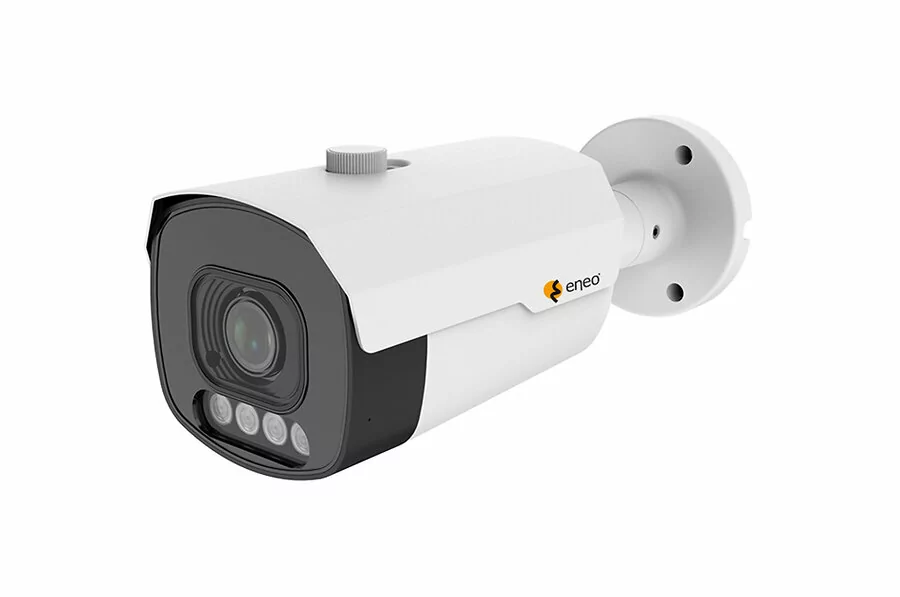

eneo is offering five new bullet cameras with full HD, 5MP and 4K resolution and various accessories for the market launch of the new, AI-based product series. Here, too, the INB-65M2812MFA and INB-68M2812MFA are two Color Night Vision AI cameras, which, due to the high light sensitivity of their image sensors, deliver color images even in the dark and, in addition to LED infrared lighting, have white light spotlights that illuminate the surveillance area in the event of an alarm. All bullet cameras in the IN series are equipped with motorized varifocal lenses and support bi-directional audio transmission.

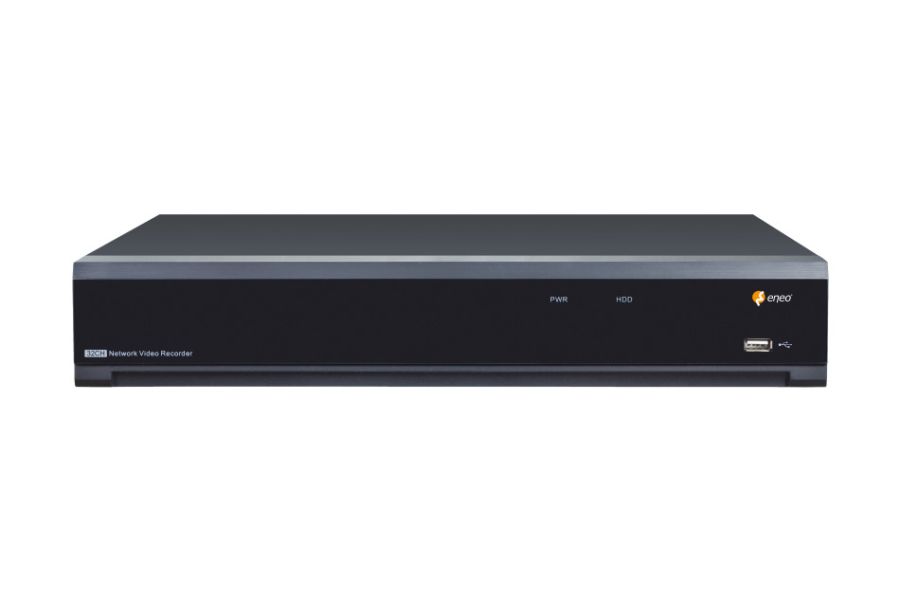

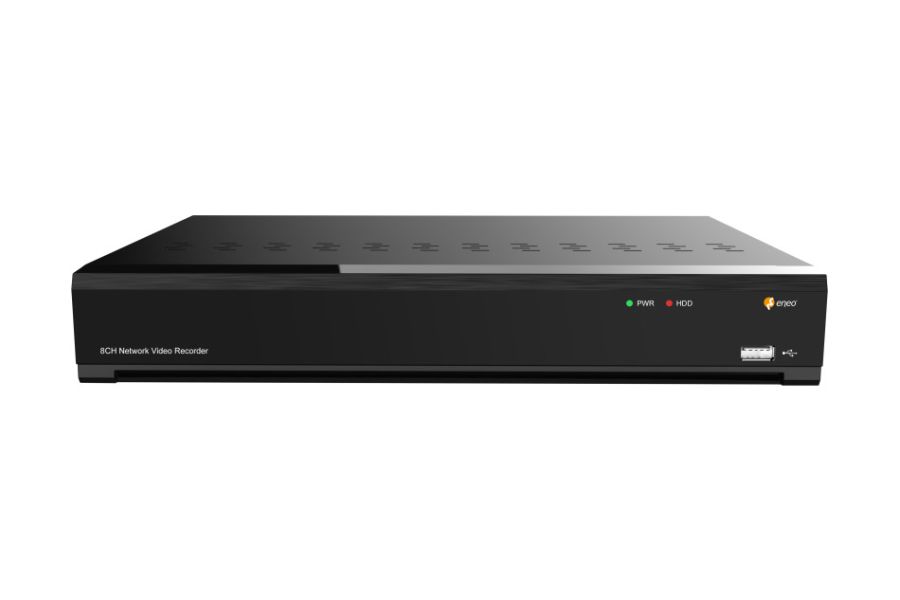

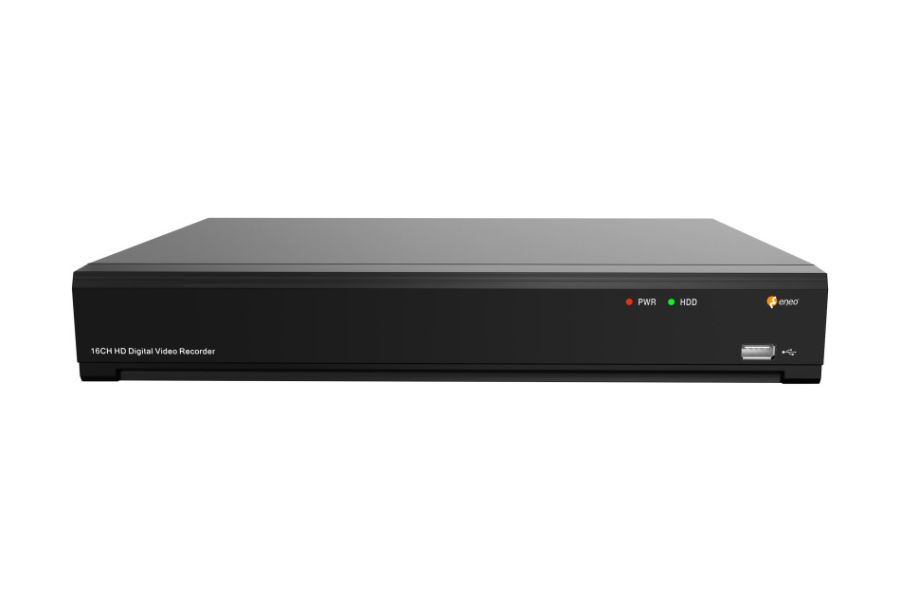

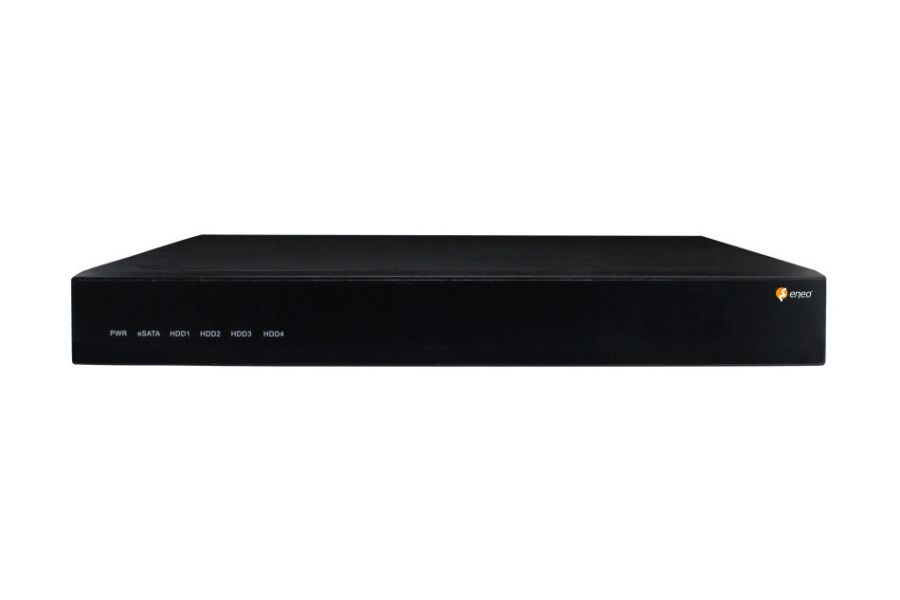

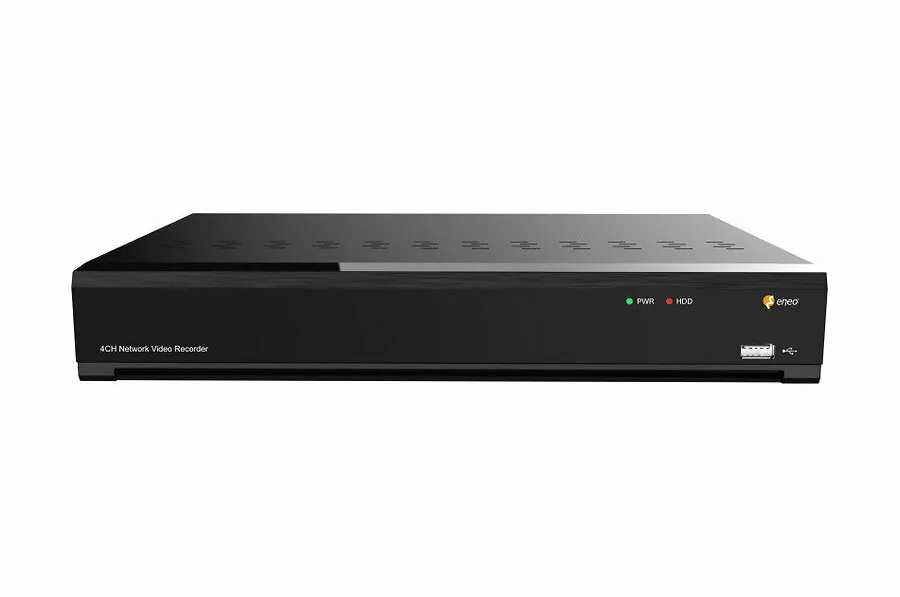

The network video recorders INR-18N040005A (4 channels), INR-28N080005A (8 channels) and INR-28N320005A (32 channels) fully support the AI ​​functions of the IN series. Two AI-enabled hybrid DVRs are also available, MNR-18N04000A (4ch) and MNR-18N16000A (16ch), supporting IP, HD-TVI, AHD and CVBS signals. With the integrated text-2-speech engine of the NVR and hybrid DVR, users can enter announcements and warnings via a text editor, which are output as audio notifications in the surveillance area of ​​the cameras. The network recorders have an eSATA connection for external memory expansion, e.g. B. the eneo HDD box INR-eSATA, with which users can integrate up to 4 HDDs, each with up to 8TB.

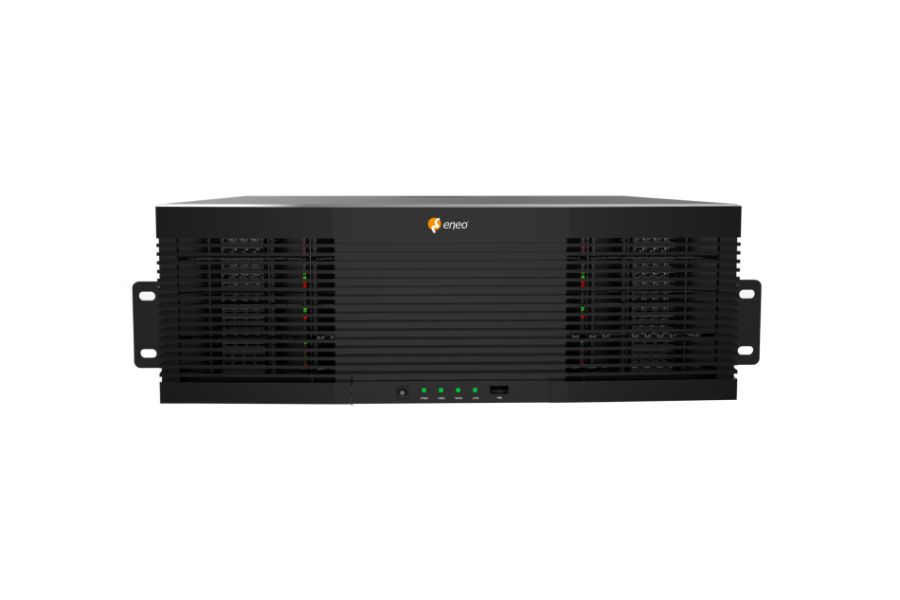

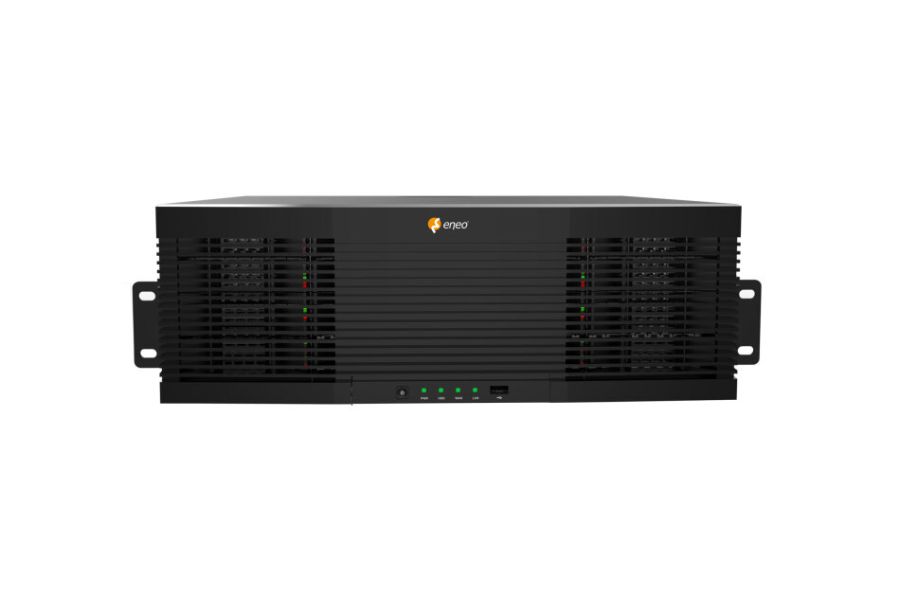

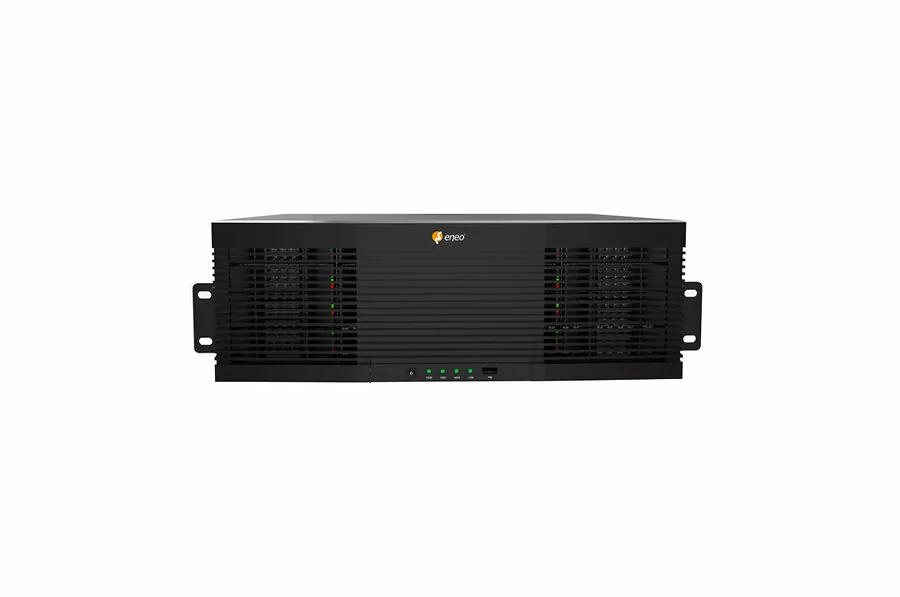

The 4K NVR INR-58N640005A allows for the seamless integration of up to 64 IP security cameras with individual resolutions of up to 12 megapixels. With an impressive total recording bandwidth of up to 640 Mbps, it is possible to effortlessly record all 64 cameras in 4K. The flexibility of the 64-channel 4K NVR enables it to meet the specific requirements of various industries and environments, ensuring high-resolution, comprehensive video surveillance. Wherever large amounts of data need to be stored locally or centrally, this 64-channel NVR is the device of choice.

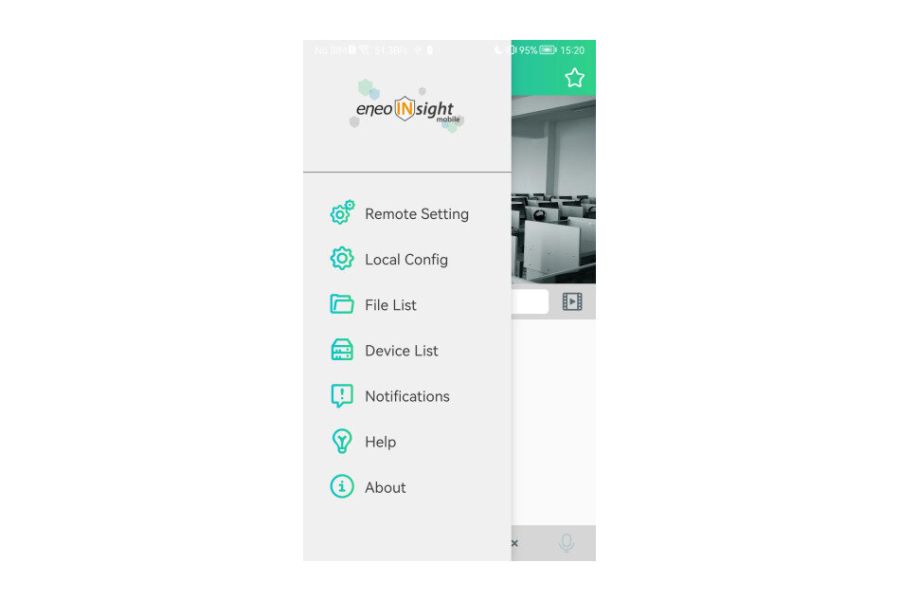

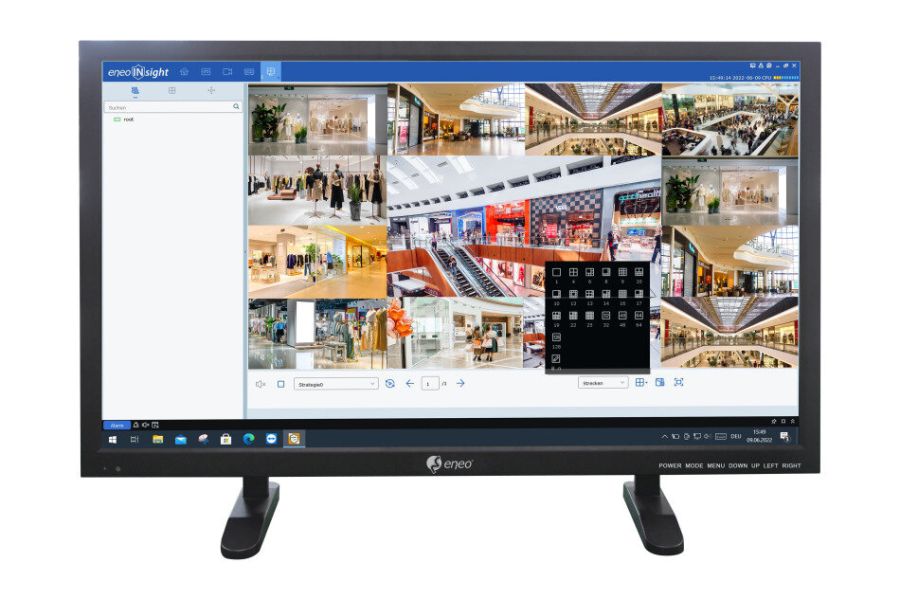

The management software eneo INsight enables the management and recording of several devices of the eneo IN series in VMS mode and the management of a single device in CMS mode. Users can remotely configure all integrated AI cameras of the eneo IN series with eneo INsight and research AI events with the flexible search function (local, NVR, DVR, SD card). They can also create custom views and favorites, manage AI databases (e.g. license plate recognition) and generate flexible map views with PIP functions. The eneo INsight mobile app supports these functions on mobile devices. In addition, it supports the control of zoom and PTZ cameras, the bidirectional audio connection to devices (if available), the manual triggering of white light (if supported by the camera), the operation of output contacts (e.g. opening a door), PUSH -Notifications of events and local recording of video sequences and still images.

The cameras of the IN series are integrated into Milestone XProtect on the basis of the ONVIF driver. AI events of the cameras are sent as push events to the Milestone system and processed as generic events.

Available functions:

• Livestreaming: IN-Series cameras are displayed in real time in Milestone XProtect.
• Recording: Milestone XProtect allows recording of video footage from the IN-Series cameras.
• PTZ control: Users can control the pan-tilt-zoom functions of the IN cameras in Milestone XProtect.
• Event control: Milestone XProtect supports the setup of events & alarms based on the AI video analysis of the IN cameras.
• Configuration: Basic configuration of IN series cameras can be done via Milestone XProtect.
• Bi-directional audio communication: If available or connected, speakers and microphones of the IN cameras can be used in Milestone XProtect.
• Contacts: Input contacts can be processed & output contacts can be controlled.

The eneo development team is already working on the next level of integration and has started developing eneo Milestone plug-ins. In parallel, the implementation of ONVIF Profile M has started.

Schnörkellose Funktionalität und ein sehr gutes Preis-Leistungs-Verhältnis empfehlen die eneo AN-Serie für Videosicherheitslösungen.

Anwenderfreundlichkeit wird bei den neuen eneo MHR Hybridrekordern großgeschrieben, sodass die Geräte in nur wenigen Schritten betriebsbereit sind. Die Signal- und Auflösungserkennung der angeschlossenen Kameras erfolgt automatisch, die Bedienung per Maus oder Fernsteuerung. Video-Aufzeichnungen können permanent oder nach Zeitplan vorgenommen werden, können aber auch bei Aktivität im Überwachungsbereich (Bewegungsdetektion, Kontakt) sowie per PoS-Text ausgelöst werden. Simultane Liveanzeige, Aufnahme, Wiedergabe und Backup sind dank der Pentaplex-Funktion ohne weiteres möglich. Der Zugriff ist via lokaler Benutzeroberfläche, Web-Oberfläche sowie mittels der kostenfreien Steuerungs-Software eneo Control und der App eneo Control mobile möglich. Darüber hinaus unterstützen die eneo MHR Hybrid-Rekorder Anwender durch diverse Wiedergabemodi und umfangreiche Suchfunktionen optimal bei der Live-Ansicht und gezielten Sichtung von Aufzeichnungen. Gespeicherte Videoaufnahmen sind u. a. nach Ereignistypen, anhand von Datum und Uhrzeit oder Textmerkmalen durchsuchbar. Die 8- und 16-Kanal Hybrid-Rekorder MHR-28N08005A und MHR-28N16005A geben Videoansichten im Vollbild-, 4-Kanal, 9-Kanal, 16-Kanal- bzw. 32-Kanal-Split wieder. Der Hybridrekorder MHR-18N04005A (4 Kanäle) unterstützt Vollbild, 4- und 8-Kanal-Split sowie Sequenz. Zoomfunktionen werden im Live- und im Playback-Vollbildmodus unterstützt. Die maximale Aufzeichnungsrate des 8- und 16-Kanal-Rekorders liegt bei 480 fps (16 x 30 fps), der Vierkanalrekorder erreicht 240 fps (8 x 30 fps), sodass Echtzeitaufnahmen für alle angeschlossenen Kameras möglich sind. Die Authentizität der aufgezeichneten Bilder gewährleistet die Wasserzeichenfunktion.

Die lizenzfreie Steuerungs-Software eneo Control und die App eneo Control mobile erlauben die komfortable Verwaltung der eneo Hybrid-Rekorder. Das anwenderfreundliche Layout der intuitiven Bedienoberfläche ist individuell anpassbar. Die jeweiligen Videoansichten können im Drag-and-Drop-Verfahren organisiert werden und auch die PTZ-Funktion von Kameras kann per Maus angesteuert werden. Ein zweistufiges Authentifizierungsverfahren verhindert unautorisierten Zugriff.
