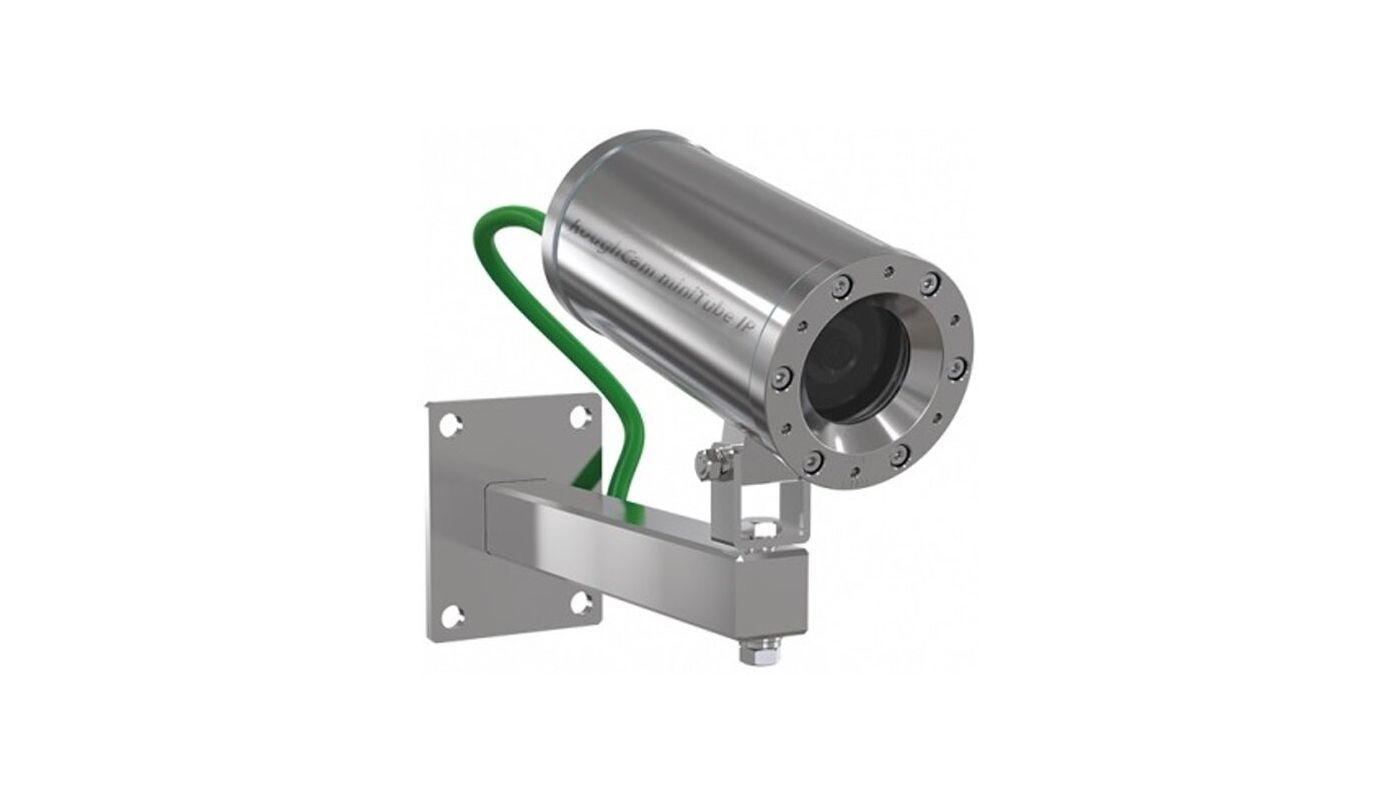

RoughCam miniTube IP T10-VA1.2.K1.BOR-N.N-005.N-P

SKU 243069
Netzwerkkamera im Edelstahlgehäuse,1080p, 30 fps, motorisiertes Varifokal Objektiv, 4x optischer Zoom, IP66/68, -30°C/+50°C
Data sheet

Specifications

Manufacturer order number ROUGHCAM MINITUBE IP T10-VA1.2.K1.BOR-N.N-005.N-P
Series RoughCam
Alarm inputs nein
Audio support no
Backlight Compensation n/a
Brand SAMCON
Camera Type Edelstahlgehäuse
Color (housing) Edelstahl
Day&Night switch ICR
Digital Noise Reduction yes
Digital Zoom yes
Focal Length 2,7 - 13,5 mm
Heater no
Horizontal Angle of View 80 - 32°
Hosuing material Stainless steel
Housing Outdoor
Image Transmission Rate 30 fps
Image resolution max. 1920x1080
Imager CMOS
Internal storage no
Low Speed Shutter yes
Motion Detector yes
ONVIF ONVIF Profile S, ONVIF Profile T
Operating temperature -30°C ~ +50°C
Power over Ethernet IEEE 802.3af
Protection rating IP66/68
Resolution Standard HD 1080p
Sensitivity 0,0008 Lux bei 40 IRE F1.6
Sensor size 1/2.8"
Serial interfaces Ethernet
Supply voltage PoE
System True Day&Night
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Wide Dynamic Range (WDR) 120dB
llumination no

Main Features

  • CMOS sensor 1/2.8" with FullHD 1920x1080p
  • Motorized varifocal lens with 4x optical zoom
  • Day/night functionality
  • Stainless steel AISI 316L
  • Certified for hazardous areas according to ATEX, IECEx, INMETRO, EAC-Ex
  • Protection class IP66/68 (IEC 60529)
  • Multi-streaming and video compression H.265
  • Made in Germany
