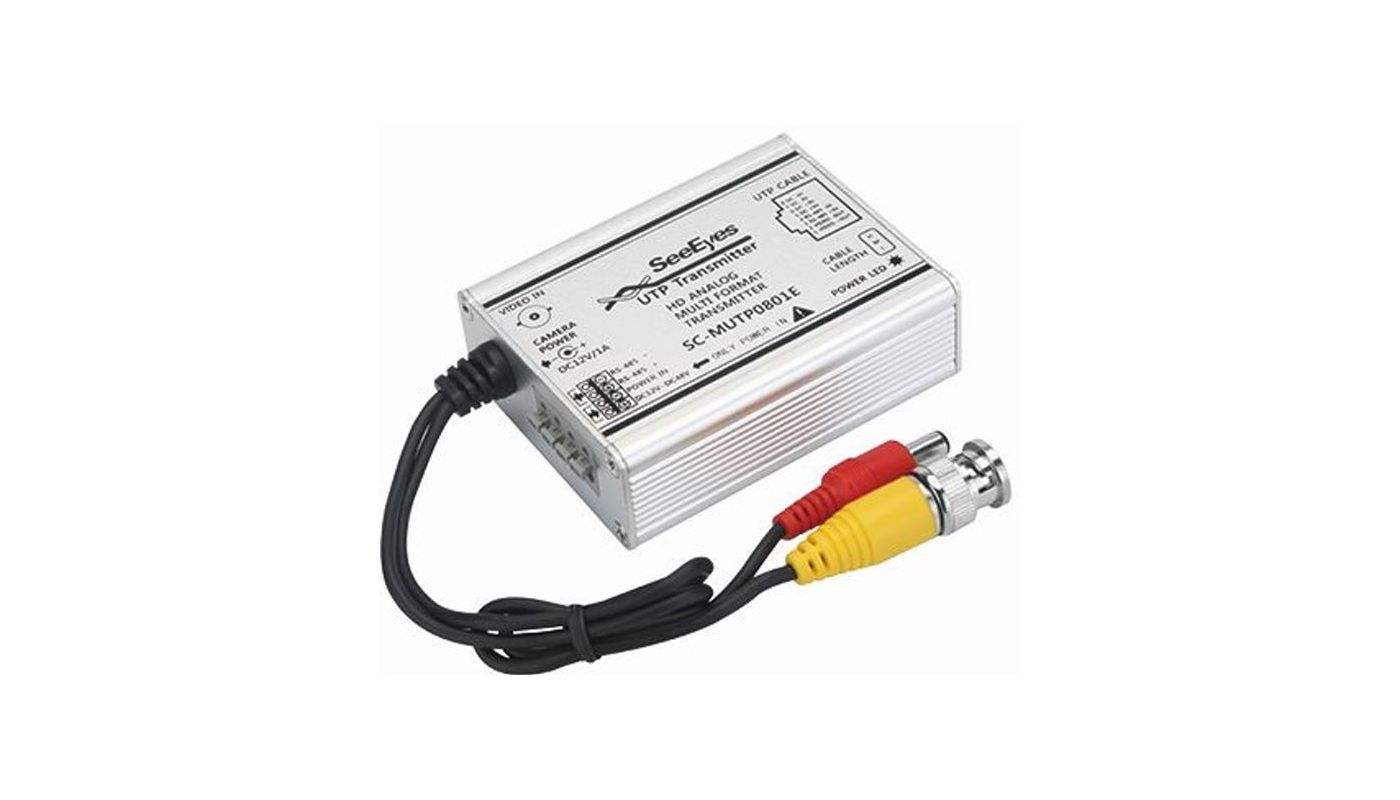

SC-MUTP0801E

SKU 236257
1-channel UTP-Transmitter supports AHD, TVI, CVI and CVBS, max 100m over CAT.5e
Data sheet

Specifications

Manufacturer order number SC-MUTP0801E
Brand SeeEyes

Main Features

  • 1CH 'Video + Power + RS-485 Data' transmission via CAT.5e
  • Supports various signals: AHD/TVI/CVI (~1080p), CVBS (NTSC/PAL)
  • Video In: ~ 1080p25/30 (AHD, TVI, CVI, CVBS)
  • Video Out: ~ 1080p25/30 (AHD, TVI, CVI, CVBS)
  • Max. 700m over CAT.5e (AHD, CVBS)
  • Max. 400m (CVI), Max. 300m (TVI) via CAT.5e
  • Power supply for one camera (~8W/ DC12V)
  • Minimization of video noise
  • Built-in overvoltage protection circuit
  • Power supply 12VDC, 48VDC
  • -10°C ~ +50C Temperature range

Downloads

  • Data sheet PDF
    Data sheet with specifications generated live from the product database
