SFP-0850MM10
SKU 216567
SFP Modul, 155Mbps , 2km, Multimode, 850nm, Duplex LC Connector, 0°~+70°C
For Prices and Availability please login.

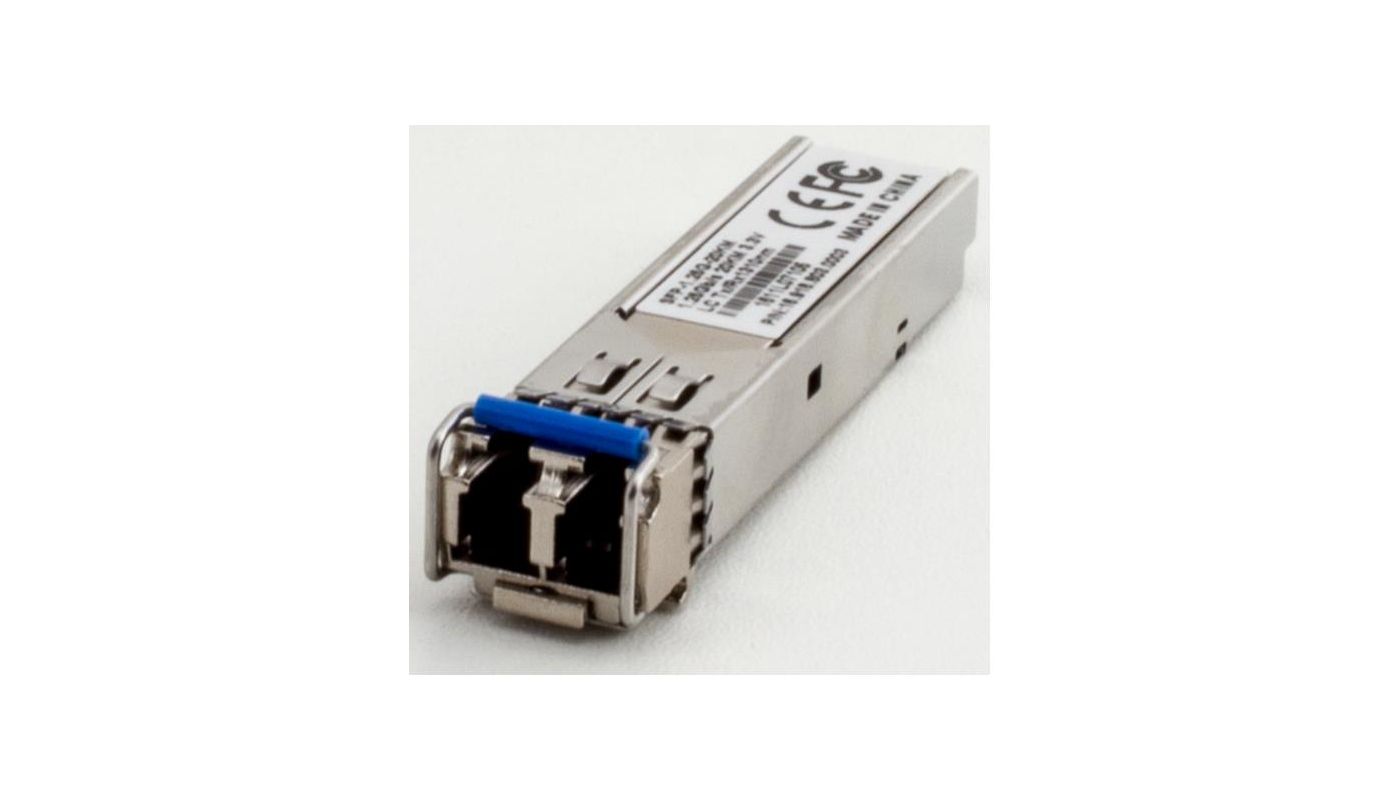

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 216567 |
|---|
| Brand | eneo |
|---|---|
| Fiber optic connector | Duplex LC |
| Number of fibers | 2 |
| Operating temperature | 0°C ~ +70°C |
| Operation mode | multi mode |
| Range | 2 km |
| Transmission medium | optical fiber |
| Type | SFP-Modul |
| Wavelength | 850nm |
| Weight | 17g |
Main Features
- Compatible to IEEE802.3 Ethernet Standard
- Bandwith 155Mbps
- Industry standard small form pluggable (SFP) package
- Duplex LC connector, 850nm
- Differential LVPECL inputs and outputs
- Single power supply 3.3V
- Hot Pluggable
- Class 1 laser product complies with EN 60825-1
- Distance 50/125 µm MMF 2km
