SOL-IQswitch-4PU-C
SKU 219802This article is no longer available Successor: SOL-IQswitch-4UD

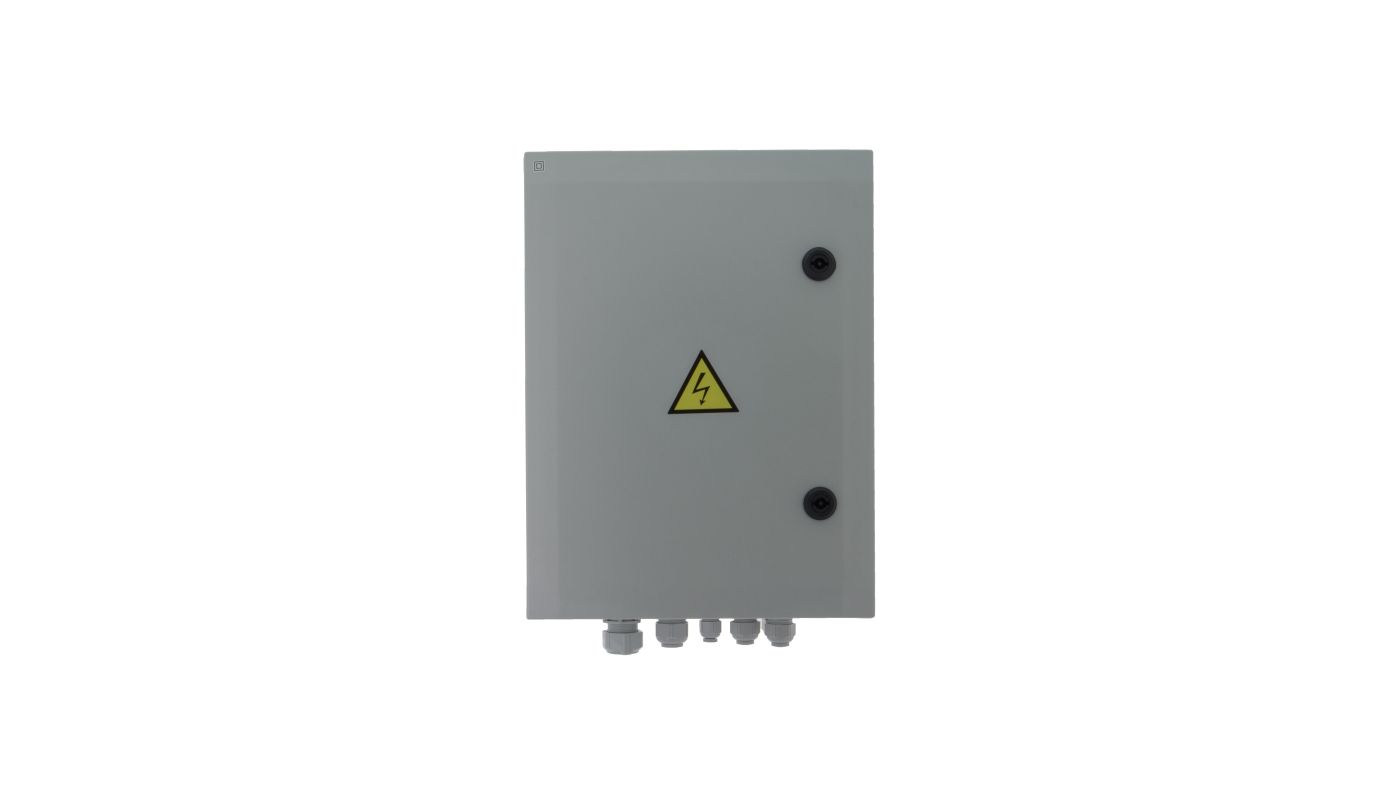

Camera junction box with 4-port unmanaged switch 4xPoE, 2xRJ45, 2xSFP 1000Mbps
Specifications
Manufacturer order number | 219802 |
---|---|
Series | Solvido IQbox |
Brand | Solvido |
---|---|
Certifications | IK10 |
Color (housing) | RAL7035 |
Dimension (lxwxd) | 400x300x150mm |
Heater | optional |
Hosuing material | Polycarbonate |
Housing | Outdoor |
Operating temperature | -10°C ~ +55°C |
Protection rating | IP66 |
Supply voltage | 230VAC |
Main Features
- Ready-to-use junction box solution
- incl. SOL-IQbox-budget
- incl. Switch IAM-5SE1004MUC
- incl. Power supply DR-120-48
- Electrically prewired and tested
- Optimised for outdoor use
- UV stable polycarbonate, corrosion-resistant
- Protective class IP66
- Impact resistance IK 10, vandalism protected
- Swivelling door (with door contact switch)
- Wall or mast mounted
- Fast, easy installation
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
