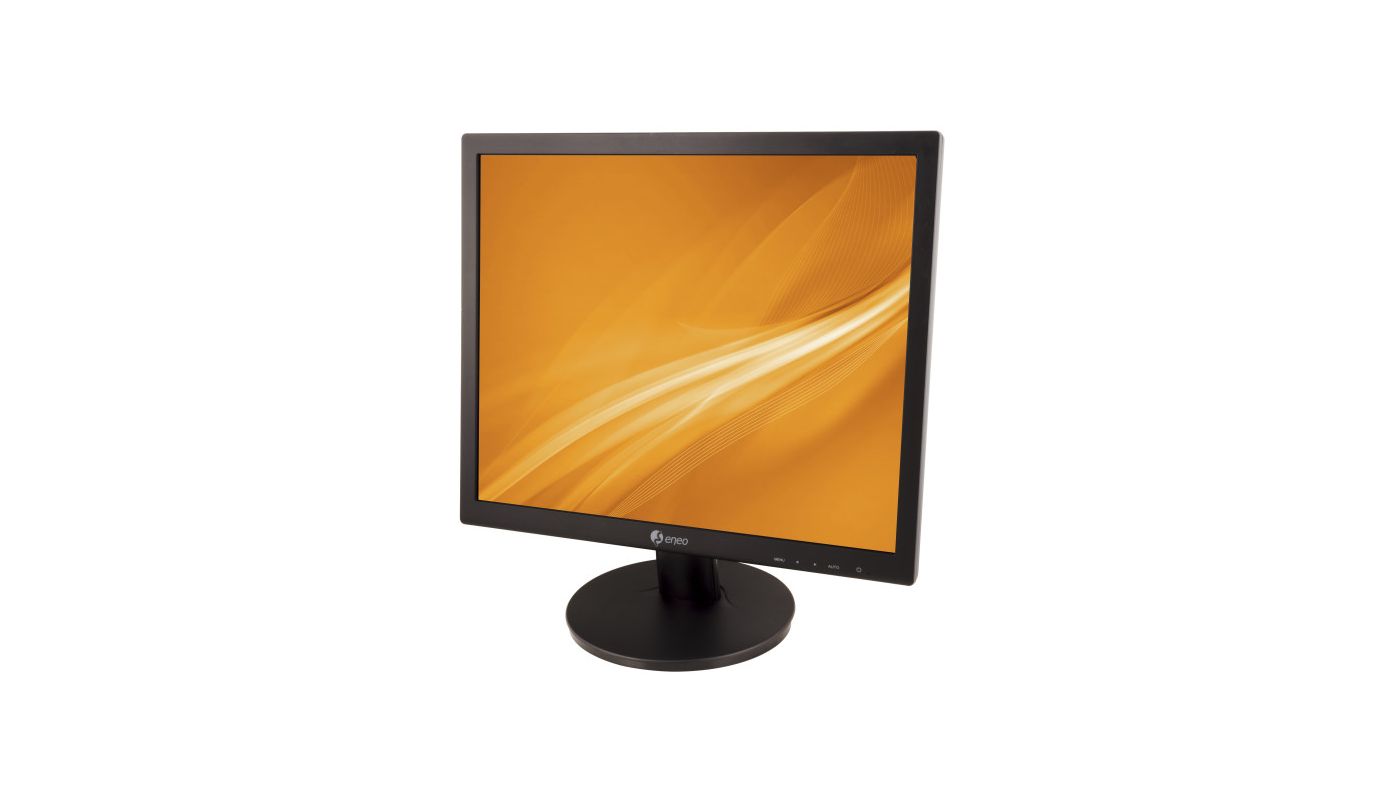

VM-19PD

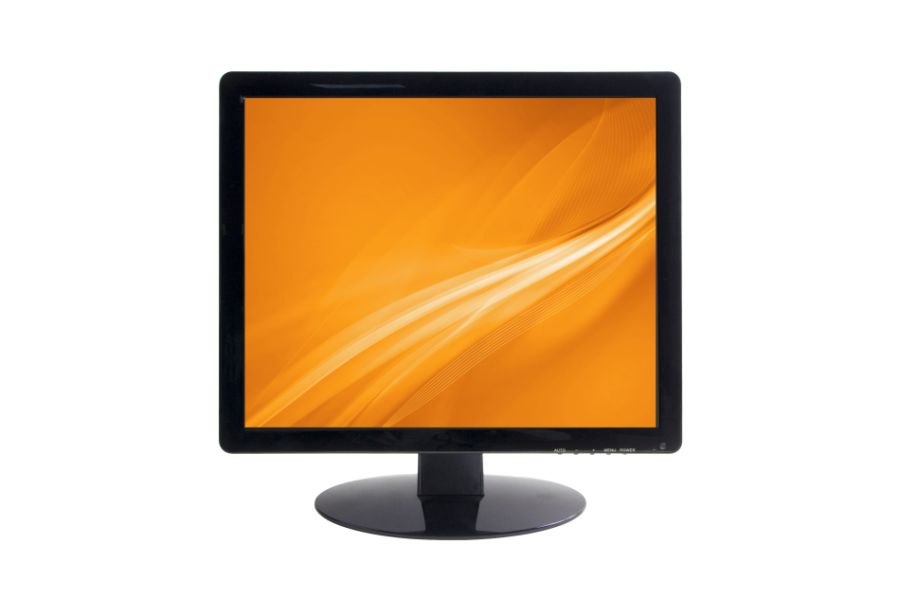

SKU 212466This article is no longer available Successor: VM-HD19P
19" (48cm) LCD Monitor, 1280x1024, 1x Composite, HDMI, RGB, Audio, 12V
Specifications
Manufacturer order number | 212466 |
---|---|
Series | eneo Monitor |
Applications | 24/7, Desktop |
---|---|
Aspect ratio | 5:4 |
Audio inputs | 1 |
Backlighting | LED |
Brand | eneo |
Brightness typical | 250 cd/m² |
Contrast ratio typical | 2.000.000:1 (DCR) |
Dimensions (HxWxD) | 410x411x183mm |
Hosuing material | Plastic |
Housing color | black |
Loudspeaker | 2 |
Operating temperature | +5°C ~ +35°C |
Power consumption | 25W |
Refresh rate | 60 Hz |
Reponse time typical | 5 ms |
Resolution Pixels | 1280x1024 |
Screen size (cm) | 48 cm |
Screen size (inch) | 19" |
Serial interfaces | no |
Video inputs (type) | composite (CVBS), HDMI, VGA |
Video outputs | Composite (CVBS) |
Viewing angle horzontal | 170° |
Viewing angle vertical | 160° |
Weight | 2.9kg |
Main Features
- Professional LCD monitor
- Built to run 24/7/365 continuously
- PAL/NTSC auto selection
- Multi-lingual on-screen menu driven setup
- 3D-comb filter, Anti Burn- in technology
- Resolution of 1280x1024 px. (SXGA)
- 1xCVBS,HDMI,RGB and audio input
- Quick signal switching (0,8sec.)
- Integrated loudspeakers
- Supply voltage: 12VDC
- Robust and compact plastic cabinet
- Table stand included
