VM-HD15M
SKU 217913
15" (38cm) LCD Monitor HD, 1024x768, LED, HDMI. VGA Composite, Metal cabinet
For Prices and Availability please login.

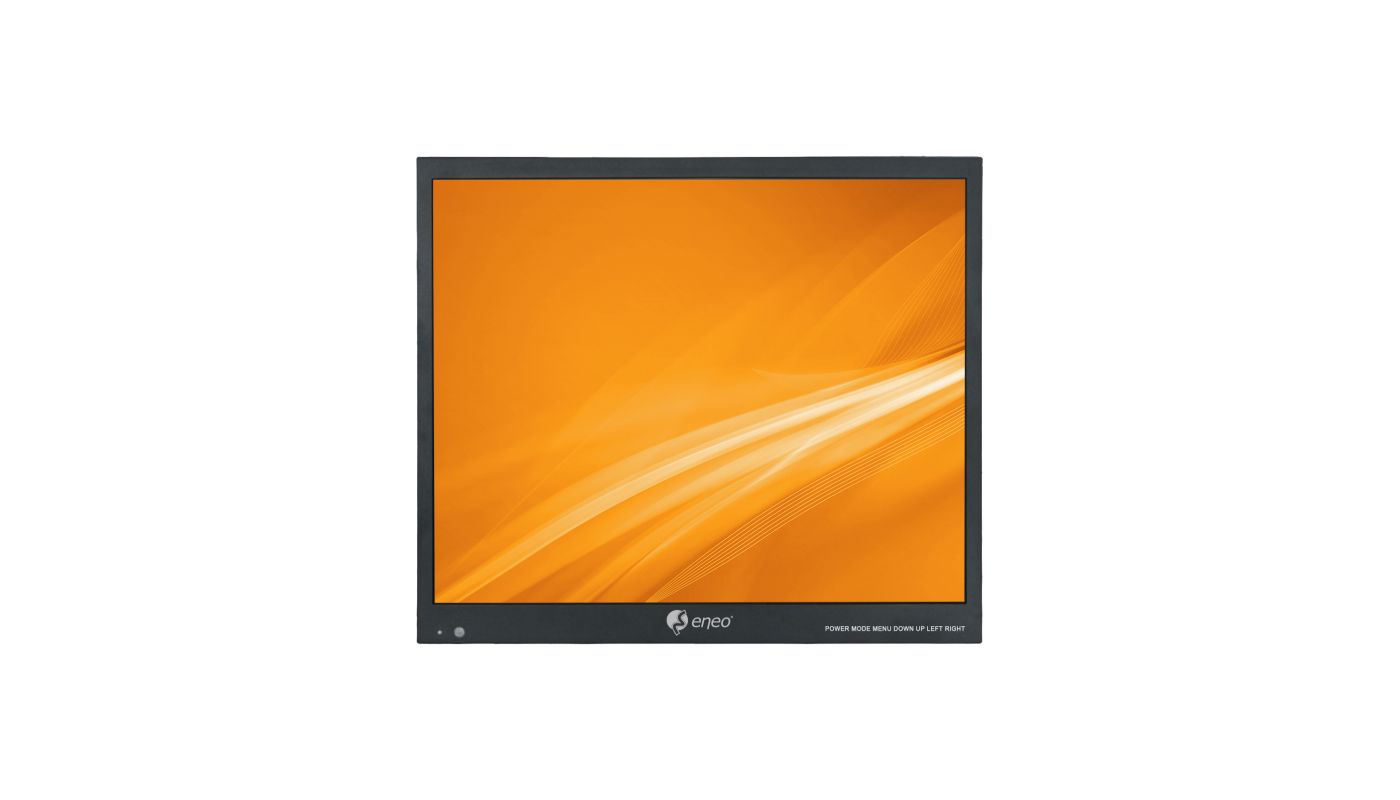

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 217913 |
|---|---|
| Series | eneo Monitor |
| Applications | 24/7 |
|---|---|
| Aspect ratio | 4:3 |
| Audio inputs | 1 |
| Audio output | 1x 3,5mm jack |
| Backlighting | LED |
| Brand | eneo |
| Brightness typical | 300 cd/m² |
| Contrast ratio typical | 800:1 |
| Dimensions (HxWxD) | 270x329x58mm |
| Hosuing material | Metal |
| Housing color | black |
| Loudspeaker | 2 |
| Operating temperature | -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing) |
| Power consumption | 15W |
| Refresh rate | 60 Hz |
| Reponse time typical | 5 ms |
| Resolution Pixels | 1024x768 |
| Resolution Pixels | 1024x768 |
| Screen size (cm) | 38 cm |
| Screen size (inch) | 15" |
| Serial interfaces | no |
| Supply voltage | 12VDC |
| Video inputs (type) | 2x composite (CVBS), HDMI, VGA |
| Video outputs | Composite (CVBS) |
| Viewing angle horzontal | 178° |
| Viewing angle vertical | 178° |
| Weight | 4,1kg |
Main Features
- Professional 15" (38 cm) LCD monitor
- Industrial design built to run 24x7x365 continuously
- Maximum resolution 1024x768 pixels
- LED Back Light
- Fast response time 5ms
- Perfect presentation through digital 3D filtering and noise reduction
- Different video inputs HDMI,VGA, Composite
- Built-in speakers
- Supply voltage: 12VDC
- Metal cabinet including stand
