VM-HD19MR
SKU 229200
19" (48cm) LCD, industrial Monitor, 1280x1024, Protection Glass, Rack Mount, 12V, HDMI
For Prices and Availability please login.

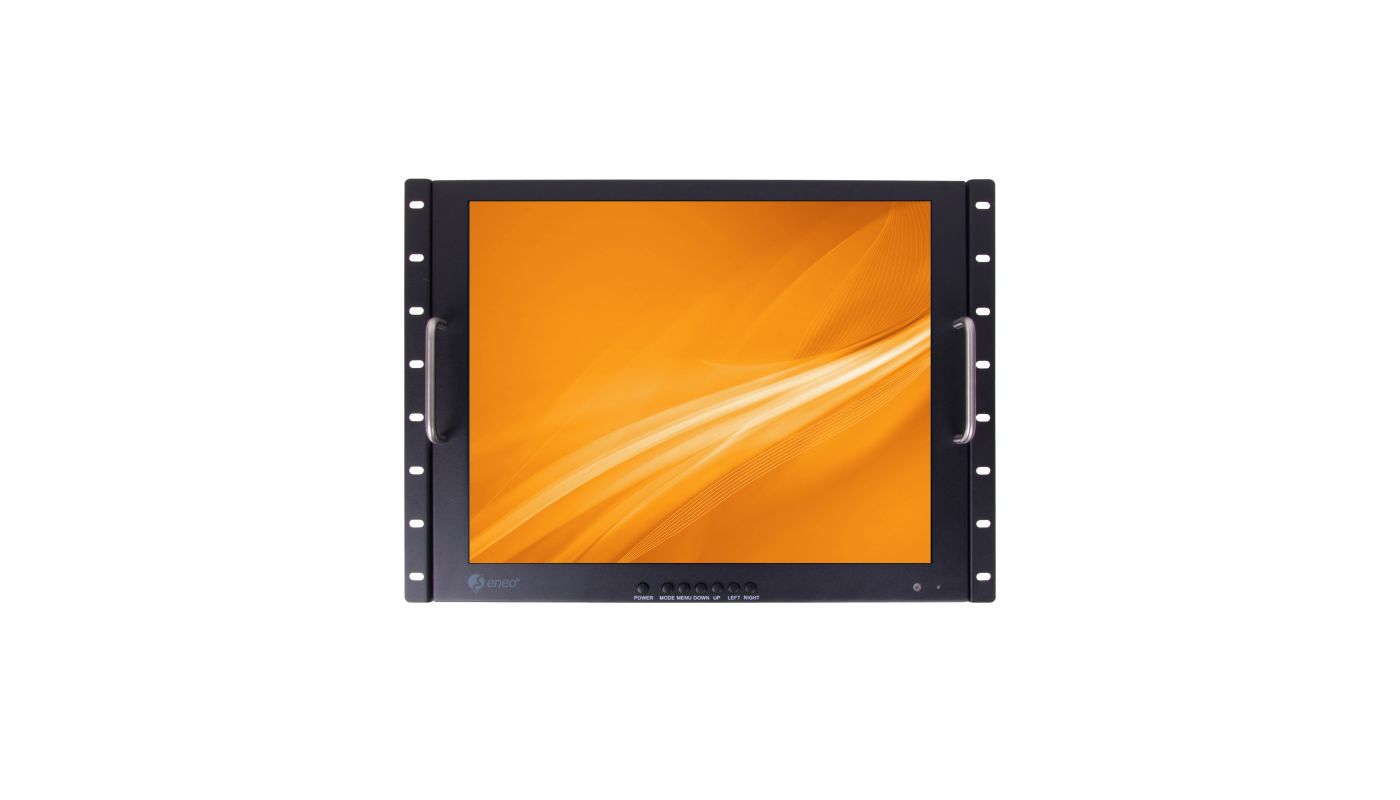

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 229200 |
|---|---|
| Series | eneo Monitor |
| Applications | 24/7, Industrie |
|---|---|
| Aspect ratio | 5:4 |
| Audio inputs | 1 |
| Audio output | 1x 3,5mm jack |
| Backlighting | LED |
| Brand | eneo |
| Brightness typical | 350 cd/m² |
| Contrast ratio typical | 1000:1 |
| Dimensions (HxWxD) | 355x482x48mm |
| Hosuing material | Metal |
| Housing color | black |
| Loudspeaker | 2 |
| Operating temperature | -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing) |
| Power consumption | 20W |
| Refresh rate | 60 Hz |
| Reponse time typical | 5 ms |
| Resolution Pixels | 1280x1024 |
| Resolution Pixels | 1280x1024 |
| Screen size (cm) | 48 cm |
| Screen size (inch) | 19" |
| Serial interfaces | no |
| Supply voltage | 12VDC |
| Video inputs (type) | 2x composite (CVBS), HDMI, VGA |
| Video outputs | Composite (CVBS) |
| Viewing angle horzontal | 178° |
| Viewing angle vertical | 178° |
| Weight | 3kg |
Main Features
- Professional 19" (48 cm) LCD monitor
- Built to run 24x7x365 continuously (Industrial Level)
- Including protection glass, Anti-Glare-Display 3H
- Extended temperature range -30°C +85°C
- Maximum resolution 1280x1024 pixels
- LED Back Light
- Fast response time 5ms
- Different video inputs HDMI, VGA, BNC (CVBS)
- Audio In- and Output
- Built-in speakers
- Supply voltage: 12VDC
- Including 19" mounting frame
Downloads
-
Data sheet with specifications generated live from the product database
-
Detailed manual for this product
-
Declaration of Conformity in German and English
-
Product Image in a high resolution for print
-
Technical data as Word document, generated live from the product database
-
