VM-HD19P
SKU 224195

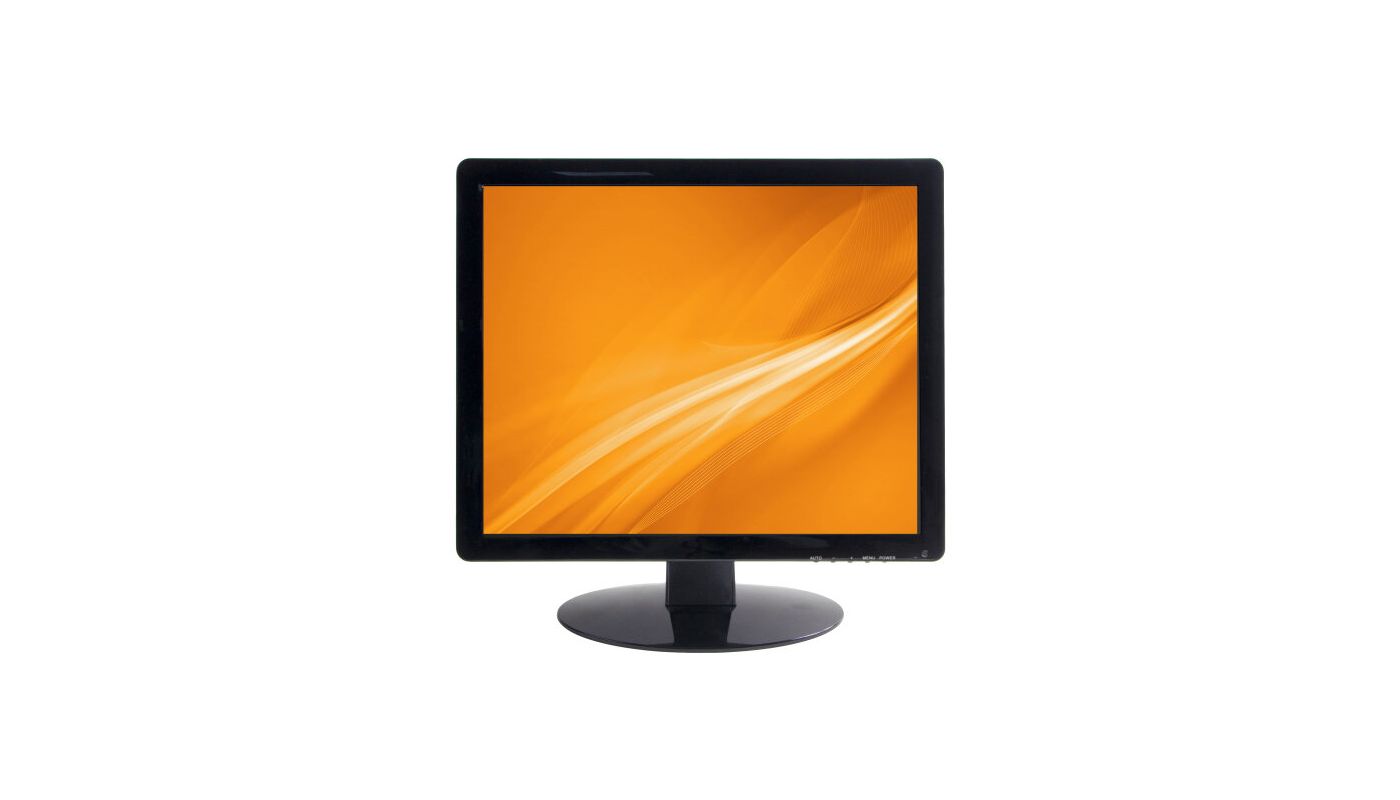

19" (48cm) LCD Monitor HD 1280x1024, LED, HDMI, VGA, Composite
For Prices and Availability please login.
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 224195 |
|---|---|
| Series | eneo Monitor |
| Applications | 24/7 |
|---|---|
| Aspect ratio | 5:4 |
| Audio inputs | 1 |
| Audio output | 1x 3,5mm jack |
| Backlighting | LED |
| Brand | eneo |
| Brightness typical | 300 cd/m² |
| Contrast ratio typical | 1000:1 |

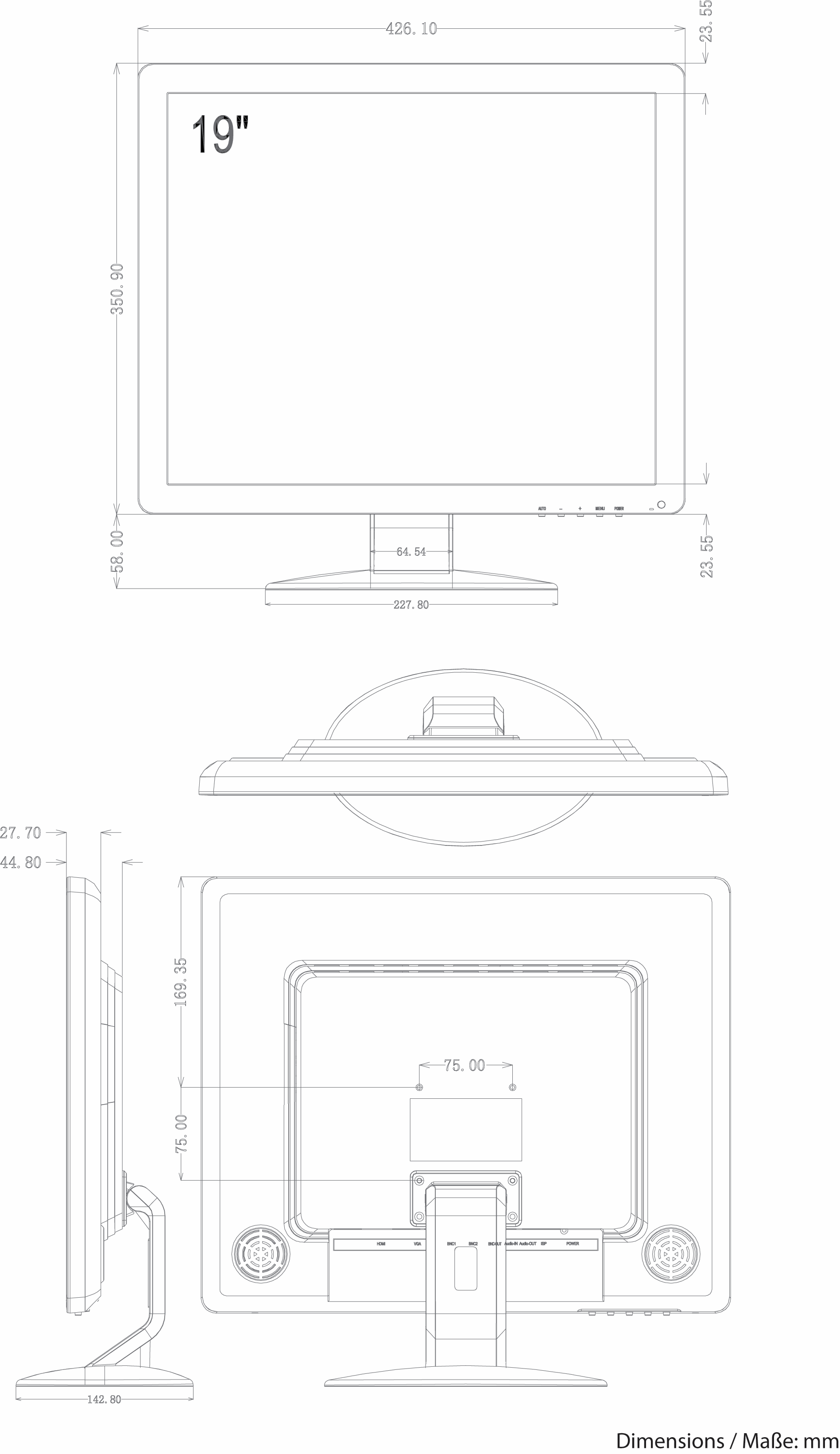

| Dimensions (HxWxD) | 350.90x425,1x44,80mm |
| Hosuing material | Plastic |
| Housing color | black |
| Loudspeaker | 2 |
| Operating temperature | -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing) |
| Power consumption | 26.5W |
| Refresh rate | 60 Hz |
| Reponse time typical | 5 ms |
| Resolution Pixels | 1280x1024 |
| Resolution Pixels | 1280x1024 |
| Screen size (cm) | 48 cm |
| Screen size (inch) | 19" |
| Serial interfaces | no |
| Supply voltage | 12VDC |
| Video inputs (type) | 2x composite (CVBS), HDMI, VGA |
| Video outputs | Composite (CVBS) |
| Viewing angle horzontal | 178° |
| Viewing angle vertical | 178° |
| Weight | 3,9kg |
Main Features
- Professional 19" (48 cm) LCD monitor
- Industrial design built to run 24x7x365 continuously
- Maximum resolution 1280x1024 pixels
- LED Back Light
- Fast response time 5ms
- Perfect presentation through digital 3D filtering and noise reduction
- Different video inputs HDMI, VGA, Composite
- Built-in speakers
- Supply Voltage: 12VDC
- Plastic cabinet including stand
